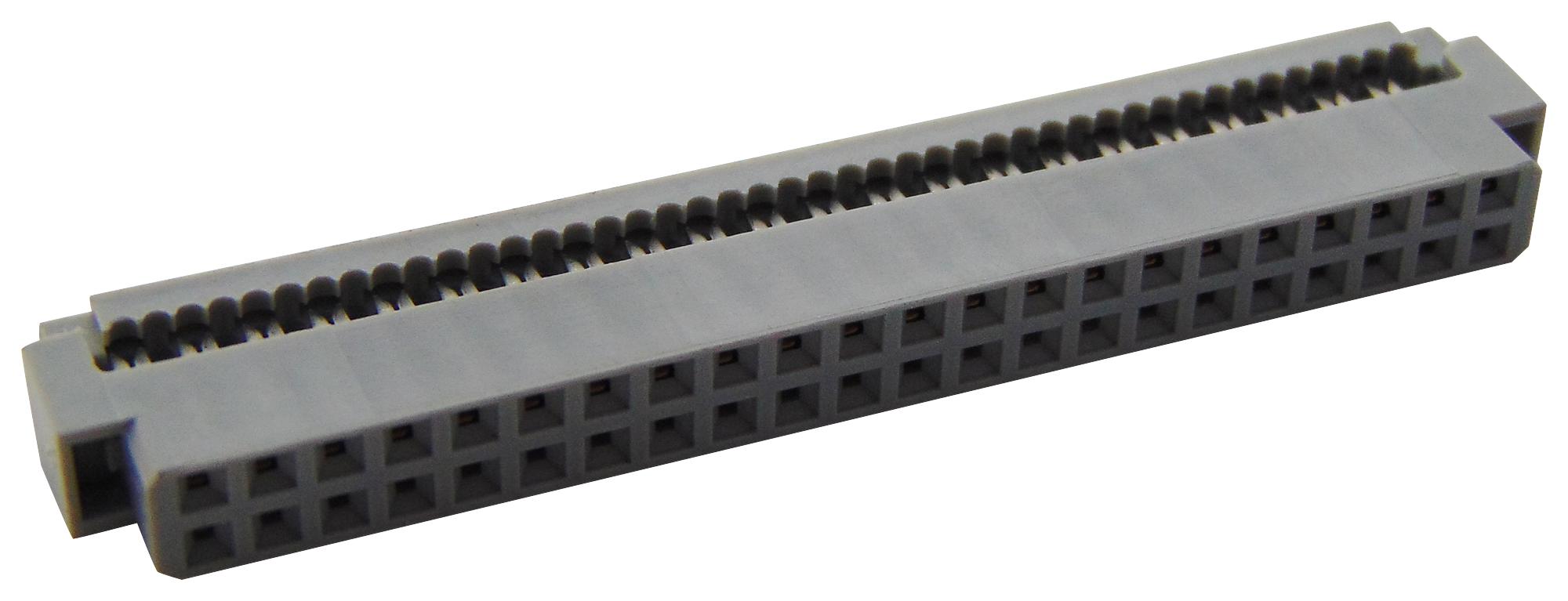

3M 1522440100GB Electronic Socket
The 3M Pak 20 Wiremount Socket is a 44-pin low-profile connector designed for robust electrical connections in electronic assemblies. Made from durable glass-filled polyester with UL 94V-0 flammability rating, it features copper alloy contacts with gold and nickel plating for excellent conductivity and corrosion resistance. Compatible with 2 mm x 2 mm grid pin strips and available with optional strain relief and polarity features, this socket supports up to 4.75 A, is rated for -55°C to +105°C, and complies with RoHS standards. Its compact, reliable design fits various industrial and electronic applications, ensuring secure, high-performance circuitry links.
3M 1522440100GB Electronic Socket Specifications:
- Material: Glass Filled Polyester (PBT), UL 94V-0
- Color: Gray
- Contact Material: Copper Alloy with Nickel and Gold Plating
- Contact Plating Thickness: 50-150 pw [1.27-3.81 um] Nickel, Gold ASTM B488-01
- Wire Accommodation: 28 AWG Stranded
- Current Rating: 4.75 A, 1 Line Powered; 2.00 A, 6 Adjacent Lines; 1.25 A, All Lines
- Temperature Rating: -55°C to +105°C
- Insulation Resistance: >1x10^9 Ω at 500 Vdc
- Withstanding Voltage: 500 V AC at Sea Level
- Assembly Height: approximately 1.0 inch with strain relief
- Dimensions: 2 mm x 2 mm grid, 1 mm pitch, various size options listed
- RoHS Compliant: Yes
Buy the 3M 1522440100GB – Reliable Electronic Socket for Industrial Applications
Acquire the 3M electronic socket easily online and enhance your electronic assemblies with a high-quality, low-profile, 44-pin connector. This socket offers excellent electrical performance, durability, and compliance with RoHS standards. Its compatibility with Pak 20 grid pin strips and options for strain relief and polarity features make it versatile for various industrial applications. Easily fit it into your project to ensure secure, reliable connections that meet demanding specifications, ensuring long-term performance and peace of mind. Purchase now for fast, convenient online delivery.
Order your 3M Series1522440100GB electronic socket today and provide your projects with the dependable, high-quality connectivity solution they need.
Frequently Asked Questions
Where can I buy 3M 1522440100GB?
You can click on the BUY or RFQ button to purchase 1522440100GB from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 1522440100GB?
You can download the 1522440100GB datasheet or visit the 3M website for support.
Who is the manufacturer of 1522440100GB?
3M
