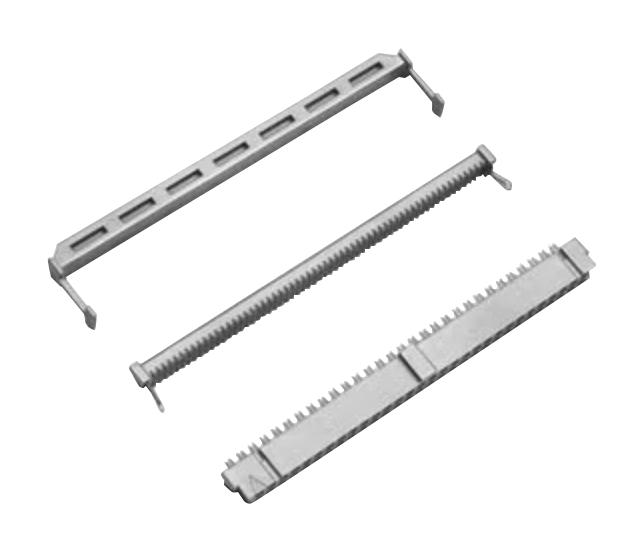

3M 34147634 Wiremount Socket Connector
The 3M 3414-7634 wiremount socket connector is designed for reliable connections in various industrial applications. This industry-standard IDC socket utilizes positive locking metal 'J' clips to ensure high cover retention and mates seamlessly with 3M headers, facilitating quick and easy connect/disconnect operations. The connector accepts both flat cable and discrete wire, offering versatility in design. Features include optional plastic or metal strain relief, military polarization, and a wiping area with gold plating for enhanced signal integrity. It is suitable for applications requiring robust and secure wire terminations.
3M 34147634 Wiremount Socket Connector Specifications:
- cable_pitch: 0.100" x 0.100" for 0.0050" pitch cable
- mates_with: 3M headers, plugs and pin strips
- accepts: Flat cable or discrete wire
- polarization: Military polarization with or without center bump
- strain_relief: Optional plastic or metal strain relief
- locking_clips: Positive locking metal "J" clips
- end_types: Open or closed end covers available
- wire_accommodation: 26 and 28 AWG solid and stranded
- current_rating: See product specification for derating curves
- insulation_resistance: >1 x 10^9 at 500V
- withstanding_voltage: 1,000Vrms at sea level
- temperature_rating: -55°C to +105°C
- material_glass_filled_polyester: PBT
- flammability_rating: UL94V-0
- metal_material: Copper alloy
- strain_relief_j_clip: Stainless steel
- plating_under_plating_u_slot: 100µ" [2.54µm] AVG. Nickel-overall
- wiping_area_gold: 30µ" [0.76µm] AVG. Gold
- markings: 3M orientation logo, part triangle identification number
