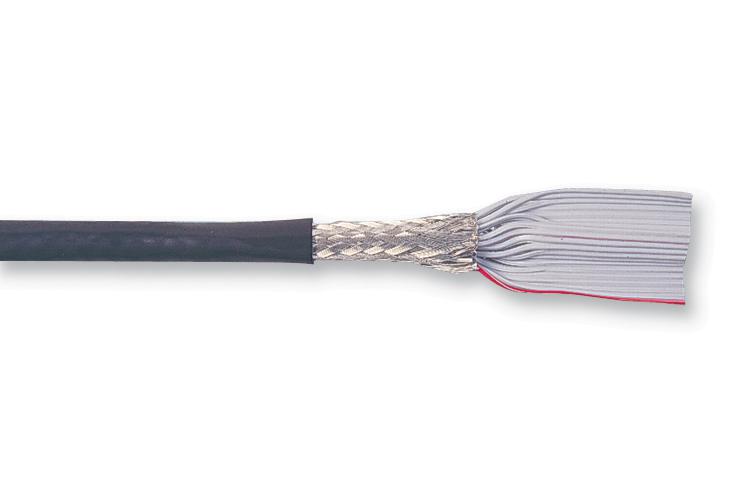

3M 365920SF Shielded Flat Cable
The 3M™ Round, Shielded/Jacketed, Flat Cable in the 3659 Series features a round construction for easier routing and broad compatibility with IDC connectors at 2.4 inch centers. It is constructed with 28 AWG tinned stranded copper conductors, shielded with aluminum/polyester film and copper braid providing 35 dB shielding effectiveness. The cable has UL and CSA ratings, meets external wiring codes, and is suitable for power-limited circuits with a voltage rating of 300V. Its PVC jacket is black, flexible, and certified for flame resistance and environmental compliance, ideal for flexible wiring in control and instrumentation applications.
3M 365920SF Shielded Flat Cable Specifications:
- Jacket Material: Polyvinyl Chloride (PVC)
- Color: Black
- Conductors: 28 AWG, 7 x 36 AWG, Tinned Stranded Copper
- Shielding: Aluminum/Polyester film foil, 90% coverage tinned copper braid
- Voltage Rating: 300V (UL, CSA, EU compliant)
- Temperature Rating: -20°C to +105°C (US), -20°C to +80°C (Canada)
- Flammability Rating: VW-1 (US), FT1 (Canada)
- Impedance: 62Ω unbalanced, 106Ω balanced
- Capacitance: 27.7 pF/ft, 90.88 pF/m
- Inductance: 0.11 μH/ft, 0.35 μH/m
- Propagation Delay: 1.72 ns/ft, 5.64 ns/m
- Velocity of Propagation: 59%
- Insulation Resistance: > 1 x 10^10 ohms/10 ft
- Environmental: -20°C to +105°C (US), -20°C to +80°C (Canada)
Buy the 3M Series 3659 Shielded Flat Cable: 365920SF
Enhance your electrical setup with the 3M shielded flat cable from the 3659 Series. Featuring 28 AWG tinned stranded copper conductors, it offers excellent shielding with aluminum/polyester film foil and copper braid. UL listed, CSA certified, and compliant with safety standards, its PVC jacket ensures durability and flexibility for power-limited circuits. Suitable for control, instrumentation, and data wiring, this reliable cable provides easy routing, broad connector compatibility, and environmental resilience for professional electrical installations.
Buy 3M 365920SF shielded flat cable now and experience unmatched flexibility, superior shielding, and reliable performance for your control wiring needs.
Frequently Asked Questions
Where can I buy 3M 365920SF?
You can click on the BUY or RFQ button to purchase 365920SF from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 365920SF?
You can download the 365920SF datasheet or visit the 3M website for support.
Who is the manufacturer of 365920SF?
3M
