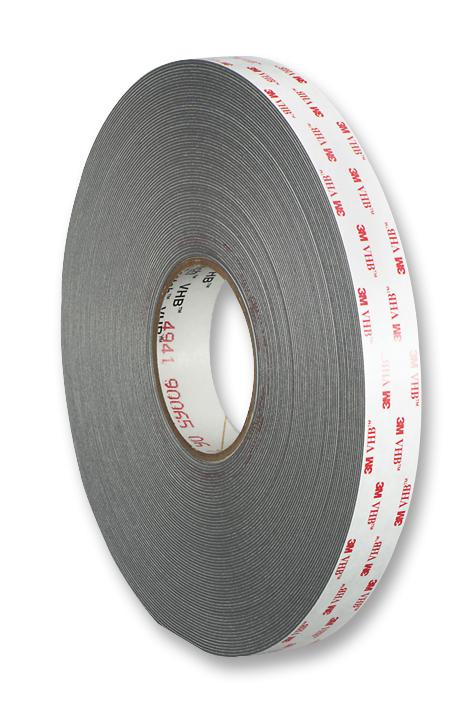

3M 494112MM VHB Acrylic Foam Tape
3M™ VHB™ Tape 4941 is a versatile double-coated acrylic foam tape designed for permanent bonding applications. Its 0.045 inch thickness and conformable foam core allow it to bridge gaps and conform to irregular surfaces, providing excellent contact and adhesion. The multi-purpose acrylic adhesive bonds strongly to various substrates including metals, glass, and plastics. This tape is ideal for replacing mechanical fasteners like rivets and screws, eliminating the need for drilling, grinding, or welding. It also creates a durable seal against water and moisture, making it suitable for a wide range of industrial and commercial applications.
3M 494112MM VHB Acrylic Foam Tape Specifications:
- Color: Gray
- Tape Thickness: 1.1 mm
- Thickness Tolerance: ±10 %
- Adhesive Type: Multi-Purpose Acrylic
- Foam Type: Conformable Acrylic Foam
- Density: 720 kg/m³
- Liner: DK Paper
- Liner Thickness: 0.08 mm
- Liner Color: White (printed)
- 90° Peel Adhesion: 22 lb/in
- Normal Tensile: 590 kPa
- Overlap Shear Strength: 480 kPa
- Short Term Temperature Resistance: 149 °C
- Long Term Temperature Tolerance: 93 °C
- Standard Roll Length: 32.9 m
- Minimum Available Width: 6.4 mm
- Maximum Available Width: 1219 mm
- Normal Slitting Tolerance: ±0.79 mm
- Core Size: 76.2 mm
- Water Vapor Transmission: 25.6 g/m²/24 hr
- Shear Modulus: 3 × 10^5 Pa
- Poisson's Ratio: 0.35
- Coefficient of Thermal Expansion: 180 × 10^-6 m/m/°C
- Dielectric Constant: 2.29
- Dissipation Factor: 0.0245
- Dielectric Strength: 14 V/μm
- Thermal Conductivity: 0.08 W/m/K
- Volume Resistivity: 2.1 × 10^14 Ω-cm
- Surface Resistivity: 2.7 × 10^14 Ω/sq
Buy the 4941 12MM 3M VHB Acrylic Foam Tape | myMectronic
Securely purchase 3M™ VHB™ Tape 4941 online for reliable and high-performance bonding solutions.
Buy Now
Frequently Asked Questions
Where can I buy 3M 494112MM?
You can click on the BUY or RFQ button to purchase 494112MM from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 494112MM?
You can download the 494112MM datasheet or visit the 3M website for support.
Who is the manufacturer of 494112MM?
3M
