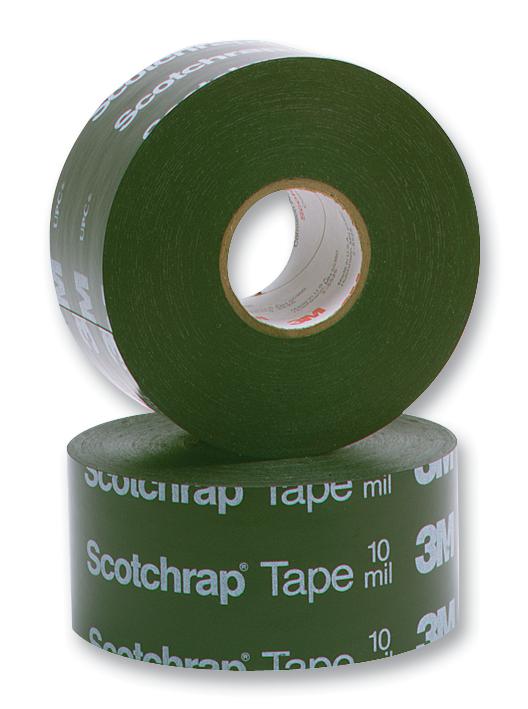

3M 5050MM Pipe Protection Tape
3M™ Scotchrap™ Tapes 50 and 51 are durable, polyvinyl chloride-based wraps with high tack adhesives designed for corrosion resistance on metal piping systems above and below ground. They withstand exposure to salt water, soil acids, alkalies, common chemicals, and weathering, making them ideal for harsh outdoor environments. Tape 50 offers 10 mil thickness and excellent conformability, while Tape 51 is thicker at 20 mils. Used with Scotchrap Pipe Primer and Scotchfil Insulation Putty, they ensure a reliable, long-lasting protective coating for pipes, fittings, and joints, providing electrical insulating properties and impact resistance.
3M 5050MM Pipe Protection Tape Specifications:
- Tape 50: Thickness 10 mils (0,254 mm), Elongation 200% at 74°F, Breaking Strength 20 lb/fin, Adhesion to Steel 20 oz/in, Water Vapor Transmission Rate 1.0 g/100 in²/24 hrs.
- Tape 51: Thickness 20 mils (0,508 mm), Elongation 150% at 74°F, Breaking Strength 40 lb/in, Adhesion to Steel 20 oz/in, Water Vapor Transmission Rate 1.0 g/100 in²/24 hrs.
- Colors: Black backing and adhesive, Resistance to weathering for 100 Hrs, Dielectric Break Down Voltage: 12,000V for Tape 50, 20,000V for Tape 51.
- Application temperature: +10°F to 150°F (-12°C to 65.6°C), Service temperature: -55°F to 175°F (-48°C to 80°C).
- Coverage: 700 sq. ft. per gallon of Scotchrap Pipe Primer at 1 mil dry film thickness; 1 square = 100 sq. ft. (approximate performance data).
- Shelf life: 5 years if stored in humid controlled conditions (10°C-27°C, <75% RH).
Buy the 3M Scotchrap 5050MM – Reliable Corrosion-Resistant Pipe Tape for Industrial Applications
Purchase 3M Scotchrap 5050MM online today to ensure your piping systems are protected against corrosion, weathering, and mechanical damage. These high-tack, PVC-coated tapes are proven to resist saltwater, soil acids, and chemicals, making them ideal for outdoor industrial environments. Combine with Scotchrap Pipe Primer and Scotchfil Insulation Putty for optimal application and long-term protection. Easy to apply without special tools, they provide excellent electrical insulation, impact resistance, and conformability, ensuring your pipes and fittings stay corrosion-free for years to come. Order now for reliable corrosion protection and durable pipe maintenance solutions.
Get 3M Scotchrap 5050MM today—built for corrosion protection and long-lasting durability in industrial pipe repair.
Frequently Asked Questions
Where can I buy 3M 5050MM?
You can click on the BUY or RFQ button to purchase 5050MM from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 5050MM?
You can download the 5050MM datasheet or visit the 3M website for support.
Who is the manufacturer of 5050MM?
3M
