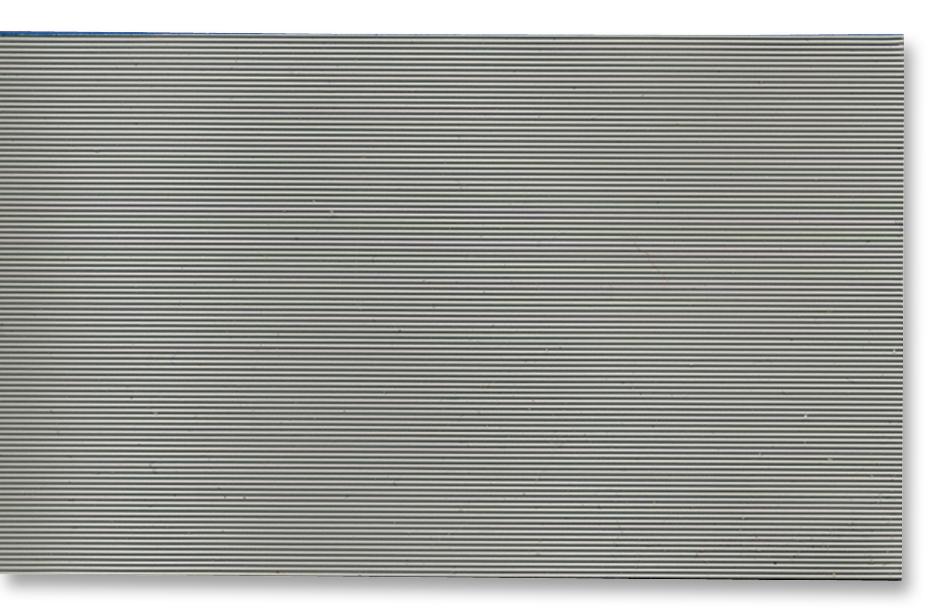

3M 375610 Round Conductor Flat Cable
The 3M 3756 series Round Conductor Flat Cables are designed for applications requiring flexibility and high signal density. These cables feature TPE insulation, providing excellent transmission properties, and 30 AWG stranded copper conductors. They are suitable for mass termination and meet SCSI-3 characteristic impedance requirements, making them ideal for various electronic applications. Available in multiple conductor counts and roll lengths, these cables offer a reliable and versatile interconnect solution.
3M 375610 Round Conductor Flat Cable Specifications:
- Insulation Material: Thermoplastic Elastomer (TPE)
- Insulation Color: Gray
- Conductor: 30 AWG, 7×38 AWG Tinned Stranded Copper
- Voltage Rating (USA): 150V
- Voltage Rating (Canada): 150V
- Voltage Rating (EU): <50V
- Insulation Resistance: > 1 × 10^10 Ω/10 ft
- Characteristic Impedance (Unbalanced): 82 Ω
- Characteristic Impedance (Balanced): 138 Ω
- Capacitance: 17.3 pF/ft (56.8 pF/m)
- Inductance: 0.12 μH/ft (0.38 μH/m)
- Propagation Delay: 1.42 ns/ft (4.66 ns/m)
- Velocity of Propagation: 72%
- Temperature Rating: -40°C to +105°C
- Flammability Rating (USA): UL Horizontal
- Flammability Rating (Canada): FT2
- UL File No.: E42769
- Style No.: 20297
