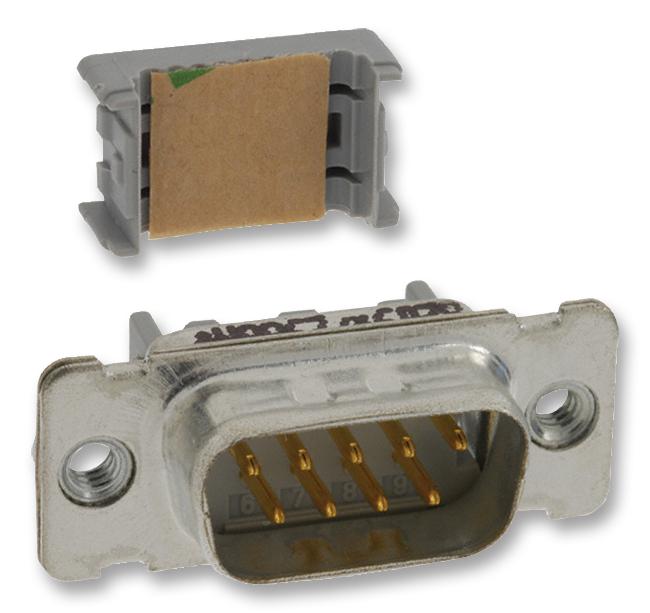

3M 82258000 D Sub Connector
The 3M D Sub Plug Connector from the 8200 Series offers a robust, low-profile design suitable for various electronic applications. It features options for open or closed end covers, dimples for EMI/ESD protection, and improved metal strain relief hooks that connect directly to the metal shell. Made from glass-filled polyester with UL 94V-0 flammability rating, it accommodates 26 and 28 AWG solid or stranded wires, rated for 1A current. With a temperature range of -55°C to +105°C, it is ideal for reliable signal and power connections in industrial and electronic assemblies.
3M 82258000 D Sub Connector Specifications:
- Insulation Material: Glass Filled Polyester (PBT)
- Flammability: UL 94V-0
- Color: Gray
- Contact Material: Copper Alloy
- Contact Plating: 50 µ” Nickel, 30 µ” Gold
- Shell Material: Steel with Tin Plating
- Strain Relief Material: Stainless Steel
- Wire Accommodation: 26 and 28 AWG Solid or Stranded
- Current Rating: 1A
- Insulation Resistance: >1x 10^9 at 500V
- Withstanding Voltage: 1000 V
- Temperature Range: -55°C to +105°C
- Regulatory Compliance: RoHS
- Mounting Options: Four options including open and closed cover styles
Buy the Buy 3M D Sub Plug Connector Part Number 82258000 Online
Purchase the 3M D Sub Plug Connector from the 8200 Series online today to enjoy dependable, high-quality connectivity for your electronic systems. Whether you need open or closed cover options, this connector offers excellent EMI/ESD protection, durable construction, and versatile mounting choices. Designed for applications requiring robust power and signal connections, its features include high-temperature tolerance, reliable insulation materials, and corrosion-resistant plating. Simplify your assembly process and secure your electronic connections by ordering this versatile, industrial-grade connector now.
Order your 3M Series8200 D Sub Plug Connector 82258000 today and ensure reliable, EMI-protected connections for your electronic projects.
Frequently Asked Questions
Where can I buy 3M 82258000?
You can click on the BUY or RFQ button to purchase 82258000 from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 82258000?
You can download the 82258000 datasheet or visit the 3M website for support.
Who is the manufacturer of 82258000?
3M
