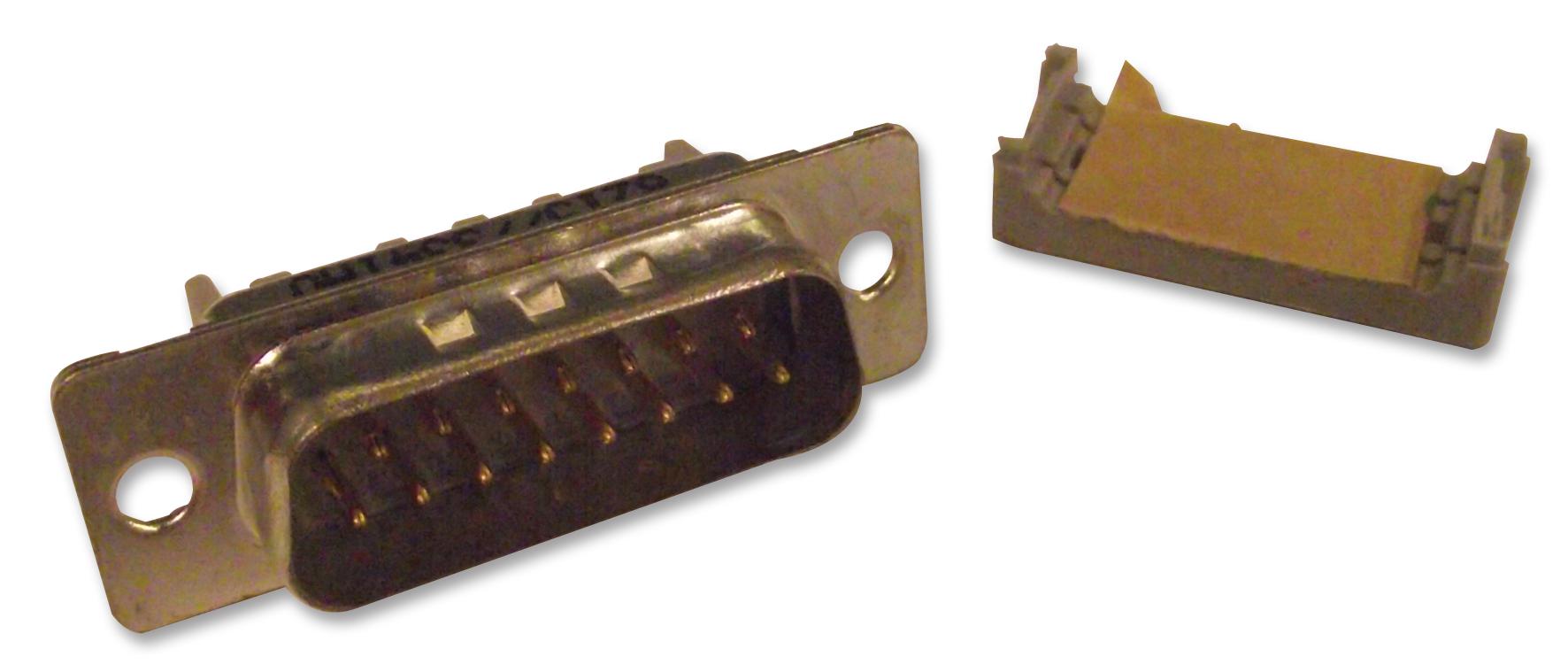

3M 82156009 D Sub Plug Connector
The 3M 8215-6009 D Sub Plug Connector is a versatile solution for data transmission applications. Featuring an open or closed end cover option, it provides flexibility in design and assembly. The improved metal strain relief hooks directly to the metal shell, enhancing durability and reliability. With four mounting options and available with dimples for EMI/ESD protection, this connector caters to diverse installation requirements. Its robust construction and RoHS compliance make it suitable for industrial and commercial use.
3M 82156009 D Sub Plug Connector Specifications:
- Material (Insulation): Glass Filled Polyester (PBT)
- Flammability: UL 94V-0
- Contact Material: Copper Alloy
- Contact Plating (Nickel): 100 μ" [ 2.54 μm ]
- Contact Plating (Gold): 30 μ" [ 0.76 μm ]
- Shell Material: Steel
- Shell Plating: Tin
- Strain Relief Material: Stainless Steel
- Strain Relief Thickness: .016 [ 0.40 ]
- Wire Accommodation: 26 and 28 AWG Solid or Stranded
- Current Rating: 1 A
- Insulation Resistance: > 1 × 10[9] Ω at 500 VDC
- Withstanding Voltage: 1000 VRMS at Sea Level
- Temperature Rating: -55°C to +105°C
- UL File No.: E68080
- Mounting Options: Four
- Marking: 3M Logo and Contact Position Numbers
Buy the 8215-6009 3M D Sub Plug Connector | myMectronic
Securely purchase the 3M 8215-6009 D Sub Plug Connector online for reliable connectivity and fast delivery.
Buy Now
Frequently Asked Questions
Where can I buy 3M 82156009?
You can click on the BUY or RFQ button to purchase 82156009 from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 82156009?
You can download the 82156009 datasheet or visit the 3M website for support.
Who is the manufacturer of 82156009?
3M
