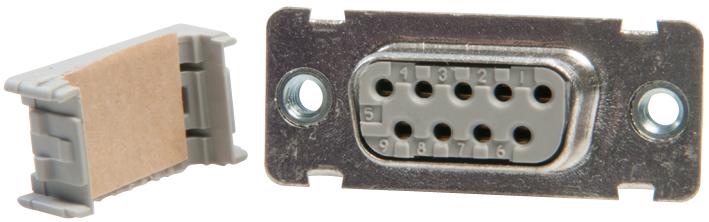

3M 83096003 Socket Connector
This socket connector offers reliable electrical connections for electronic applications, featuring corrosion-resistant contact plating, various mounting options, and a robust polybutylene terephthalate (PBT) insulation body rated UL 94V-0. Designed for durability and performance, it supports multiple pin configurations to meet diverse design needs, with current ratings up to 1000V and temperature ratings from -55°C to +105°C. Suitable for panel mounting in high-reliability systems, it ensures safe, stable connections with strain relief options and a compact profile.
3M 83096003 Socket Connector Specifications:
- Material: Glass Filled Polyester (PBT)
- Flammability: UL 94V-0
- Color: Gray
- Contact Material: Copper Alloy
- Plating: Nickel 2.54 um, Gold 0.76 um
- Shell Material: Steel
- Strain Relief Material: Stainless Steel
- Wire Accommodation: 26 and 28 AWG Solid or Stranded
- Current Rating: 1000 V at Sea Level
- Temperature Rating: -55°C to +105°C
- Mounting Style: Front Mount and Rear Mount options with threaded inserts#4-40 UNC
- Panel Cutout: Ø 0.81 in (Max)
- Dimensions: Various configurations with pin spacing of approximately 1.23 in and body thickness of 0.16 in
- UL File No.: E68080
- Standard: 3M 8300 Series
- Assembly Tools: 3M Press 3640, Locator Plate 3443-106N, Platen 3442-9
Buy the Buy 3M Socket Connector Part Number 83096003 Online
Purchase the 3M socket connector 83096003 online today and enjoy high-quality, durable electrical connections suitable for various electronic systems. Its corrosion-resistant contacts, UL-rated insulation, and customizable mounting options ensure stable and secure performance in demanding environments. With a compact design, multiple pin configurations, and a range of mounting styles including front and rear mount, this connector is ideal for high-reliability applications. Order now to upgrade your electronic assemblies with proven 3M connection technology.
Buy 3M socket connector 83096003 now and experience unmatched reliability and performance in electronic connection solutions.
Frequently Asked Questions
Where can I buy 3M 83096003?
You can click on the BUY or RFQ button to purchase 83096003 from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 83096003?
You can download the 83096003 datasheet or visit the 3M website for support.
Who is the manufacturer of 83096003?
3M
