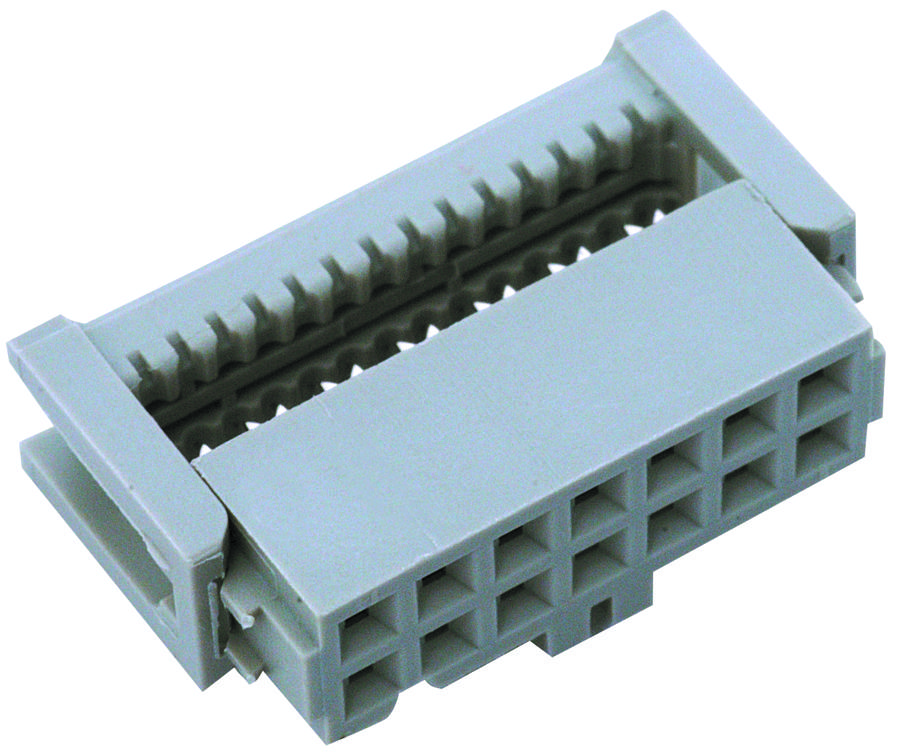

3M 891140101 IDC Connector
Preassembled wiremount connector with a 0.100-inch pitch suitable for .050-inch pitch cables. Designed for reliable electrical connections in electronic assemblies, featuring a gray polyester housing, phosphor bronze contacts with nickel and gold plating, and optional features like centerbump polarization and pull tabs for easy handling. It includes strain relief options, dual polarization slots, and is suitable for use in various electronic systems requiring secure, high-performance connections. This connector complies with UL 94V-0 flammability standards and withstands temperatures from -55°C to +105°C.
3M 891140101 IDC Connector Specifications:
- Material: Glass Filled Polyester (PBT), UL 94V-0
- Contact Material: Phosphor Bronze
- Plating: 30 µin (0.76 µm) Gold over 50 µin (1.27 µm) Nickel
- Wire Range: 26-28 AWG Stranded
- Temperature Rating: -55°C to +105°C
- Current Rating: 1 A per contact under rated conditions
- Insulation Resistance: > 1 GΩ at 500 V
- Withstanding Voltage: 1,000 V at Sea Level
- Dimensions: 0.100” x 0.100” pitch, assembled height approx. 14 mm with strain relief
- Certifications: UL Listed (File No. E68080)
- Color: Gray
- Package Style: Preassembled, optional pull tabs available
- Additional features: Dual polarization, optional centerbump, strain relief available separately
Buy the Buy 3M IDC Ribbon Cable Socket Part Number 891140101 Online
Enhance your electronic assemblies with the 3M IDC Connector, featuring a 0.100-inch pitch, durable polyester housing, and gold-plated contacts for superior conductivity. Preassembled for easy loading, it includes optional features like strain relief and polarization options, making it ideal for reliable and secure cable connections. Suitable for a wide range of applications, this connector ensures high performance and compliance with UL standards. Order online today to benefit from quick delivery and premium quality, ensuring your projects meet the highest standards of safety and durability.
Order your 3M Series 891 Cable Connector today and enhance the reliability of your electronic connections with high-quality, easy-to-assemble solutions.
Frequently Asked Questions
Where can I buy 3M 891140101?
You can click on the BUY or RFQ button to purchase 891140101 from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 891140101?
You can download the 891140101 datasheet or visit the 3M website for support.
Who is the manufacturer of 891140101?
3M
