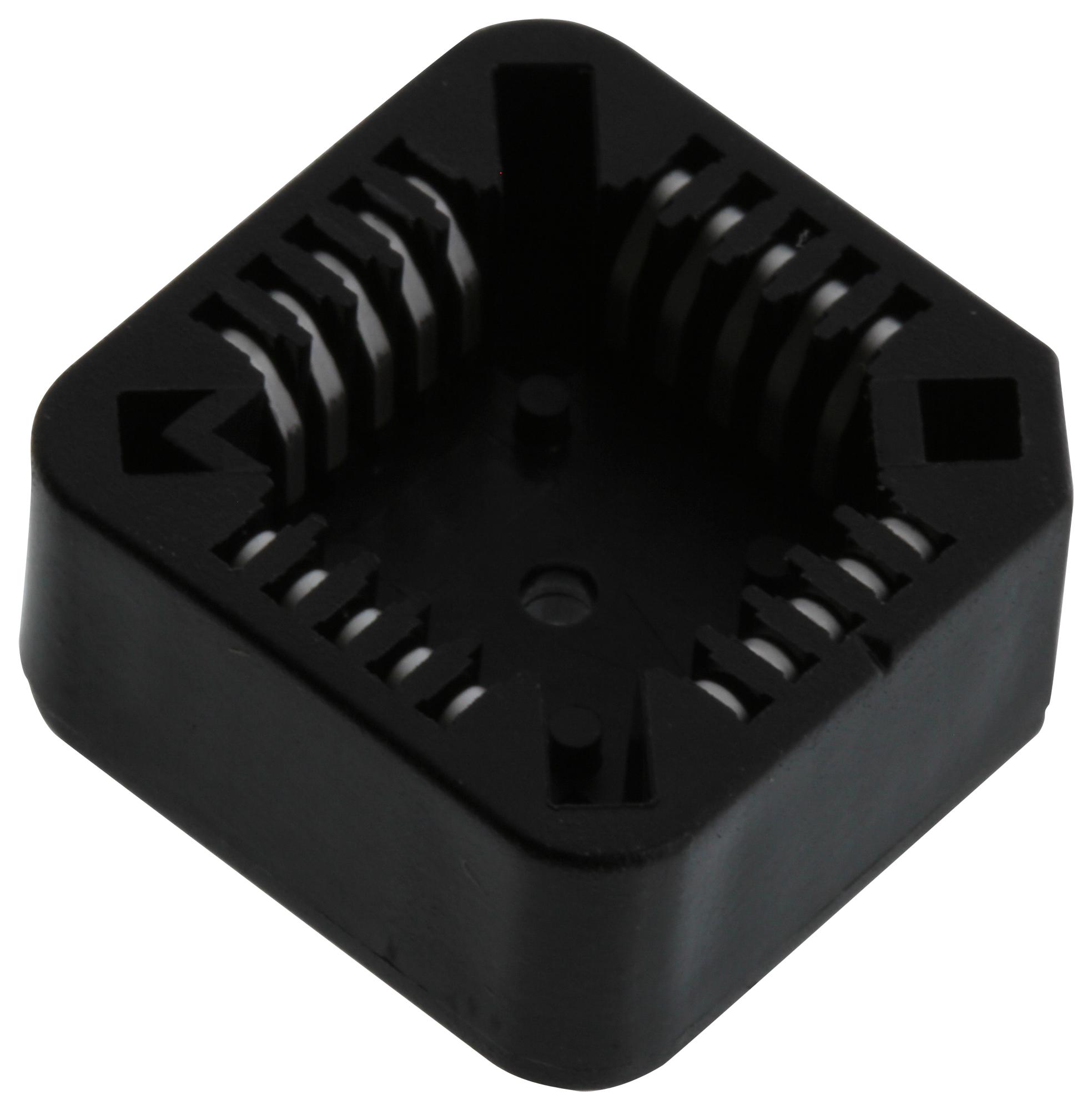

3M 842011B1RKTP Chip Carrier Socket
The 3M Chip Carrier Socket series offers low-profile, four-row through-hole connectors designed to accept JEDEC-compliant chip carriers, including MO-047 for square and MO-052 for rectangular configurations. These sockets are compatible with automated loading equipment and feature an open-top design for unrestricted airflow. Molded slots facilitate easy device extraction, and they are wave solder compatible, though not suitable for reflow soldering. Constructed with glass-filled polyester insulation, they provide reliable electrical performance with contact resistance of 15 milliohms and insulation resistance exceeding 10^9 ohms, rated for -40°C to +105°C. RoHS compliant, they are ideal for high-density electronic applications requiring secure mechanical and electrical connections.
3M 842011B1RKTP Chip Carrier Socket Specifications:
- Insulation Material: Glass Filled Polyester (PBT)
- Flammability: UL 94V-0
- Color: Black
- Contact Material: Copper Alloy
- Plating: 50 μ
- 1.27
- 4.06
- 1.6
- 0.06
- 1.27
- 4.06
- 1.6
- 0.06
- 160
- 4.06
- 0.063
- 0.99
- 0.06
- 5
- 0.2
- 15
- 10000000000
- 1
- 105
- 221
- Wave Solder Compatibility
- Operating Temperature: -40°C to +105°C
- Process Compatibility: Wave Solder Only
- Environmental Compliance: RoHS
- Electrical Resistance: Contact Resistance 15 mΩ, Insulation Resistance >10^9 Ω, Capacitance <1 pF at 1 MHz
Buy the Buy 3M Chip Carrier Sockets Part Number 842011B1RKTP Online
Purchase the 3M Chip Carrier Socket online today. Engineered for precision, durability, and easy installation, these sockets support JEDEC outlines, ensuring secure connections for complex electronic assemblies. Features include open top airflow design, wave solder compatibility, and RoHS compliance, making them ideal for demanding industry applications. Reliable electrical performance with low contact resistance, high insulation resistance, and temperature tolerance from -40°C to +105°C. Secure your circuit connections with high-quality 3M chip carrier sockets available for quick online ordering.
Get 3M 842011B1RKTP today—designed for reliable electrical connections and easy installation in high-density circuit boards.
Frequently Asked Questions
Where can I buy 3M 842011B1RKTP?
You can click on the BUY or RFQ button to purchase 842011B1RKTP from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 842011B1RKTP?
You can download the 842011B1RKTP datasheet or visit the 3M website for support.
Who is the manufacturer of 842011B1RKTP?
3M
