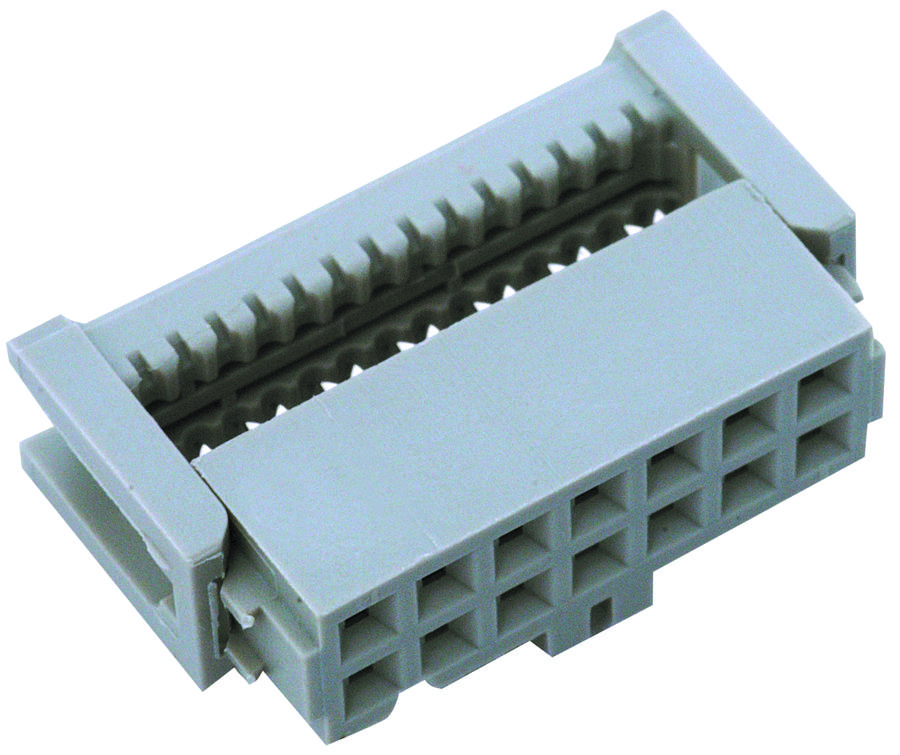

3M 891160101 Cable Connector
Preassembled wiremount connector for .050-inch pitch cables, designed for reliable and easy installation. Features include a gray polyester housing, dual polarization slots, and optional pull tabs for secure, versatile connections suited for industrial electronics and wiring harnesses. Constructed from UL 94V-0 glass-filled polyester with phosphor bronze contacts plated with nickel and gold, it supports multiple wire sizes including 26 and 28 AWG stranded wires. The connector is rated for 30 V at sea level, with a temperature tolerance from -55°C to +105°C, ensuring durability in various environments.
3M 891160101 Cable Connector Specifications:
- Material: Glass Filled Polyester (PBT), UL 94V-0
- Contact Material: Phosphor Bronze
- Contact Plating: Nickel underplating, Gold wiping area
- Wire Range: 26 and 28 AWG stranded wires
- Temperature Rating: -55°C to +105°C
- Voltage Rating: 30 V at sea level
- Dimensions: Approximate height 14 mm with strain relief, width varies depending on position
- Housing Color: Gray
- Rated Current: 1 A
- UL File No.: E68080
- Recessed for cable exit, dual polarization, optional pull tabs, preassembled packaging for easy loading, designed for industrial applications
Buy the 3M 891160101 – Reliable Connectors for Industrial Applications
Enhance your wiring setup with the 3M Cable Connector, designed for .050-inch pitch cables. Preassembled for quick, secure installation with optional pull tabs and dual polarization slots. Made from durable UL 94V-0 polyester with gold and nickel-plated phosphor bronze contacts, this connector supports wires up to 28 AWG, rated for 30 V and -55°C to +105°C. Perfect for industrial electronics and automation, it ensures dependable performance and easy assembly. Order online today for hassle-free connectivity and reliable performance.
Buy 3M 891160101 now and experience unmatched reliability and easy installation for industrial wiring systems.
Frequently Asked Questions
Where can I buy 3M 891160101?
You can click on the BUY or RFQ button to purchase 891160101 from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 891160101?
You can download the 891160101 datasheet or visit the 3M website for support.
Who is the manufacturer of 891160101?
3M
