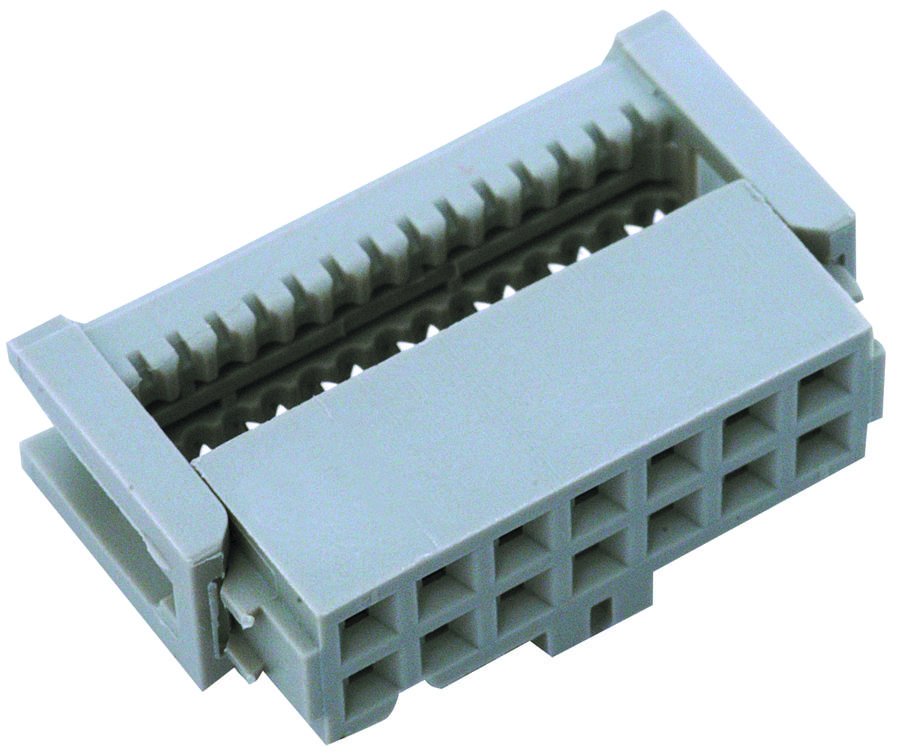

3M 891500101 IDC Ribbon Cable Socket
Preassembled wire mount for .050-inch pitch cable, designed for reliable connections in electronic assemblies. It features a gray polyester insulation material UL 94V-0 flammability rating, phosphor bronze contacts plated with nickel and gold, accommodating 26 and 28 AWG stranded wires. The socket supports a current rating up to 425 mA for 28 AWG and 4.50 N in wire insertion force, with insulation resistance of 1000 MΩ min and withstand voltage of 1000 V. Suitable for automatic wiring, it includes optional strain relief and polarization options for secure connection and easy assembly.
3M 891500101 IDC Ribbon Cable Socket Specifications:
- Insulation Material: Glass Filled Polyester (PBT)
- Flammability: UL 94V-0
- Color: Gray
- Contact Material: Phosphor Bronze
- Plating: Nickel 50 micrometers, Gold 30 nanometers
- Wire Range: 26 and 28 AWG Stranded
- Current Rating: 425 mA (28 AWG), 4.50 N (wire insertion force)
- Insulation Resistance: ≥ 1000 MΩ
- Withstanding Voltage: 1000 V
- Temperature Rating: -55°C to +105°C
- Package include: Preassembled sockets, optional strain relief and polarization features
Buy the Buy 3M IDC Ribbon Cable Socket Part Number 891500101 Online
Purchase the 3M IDC Ribbon Cable Socket online for fast, secure, and reliable connections in electronic systems. This preassembled socket features durable materials, precise dimensions, and optional strain relief for enhanced stability. Its compatible with 26 and 28 AWG stranded wires, supporting high current ratings and excellent insulation resistance. Easy to install with a comprehensive design that includes polarization and optional pull tabs, making it ideal for automation, electronic prototyping, and manufacturing environments. Order now for efficient assembly and dependable performance.
Buy 3M IDC Ribbon Cable Socket 891500101 now and experience unmatched reliability and performance in your electronic assembly projects.
Frequently Asked Questions
Where can I buy 3M 891500101?
You can click on the BUY or RFQ button to purchase 891500101 from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 891500101?
You can download the 891500101 datasheet or visit the 3M website for support.
Who is the manufacturer of 891500101?
3M
