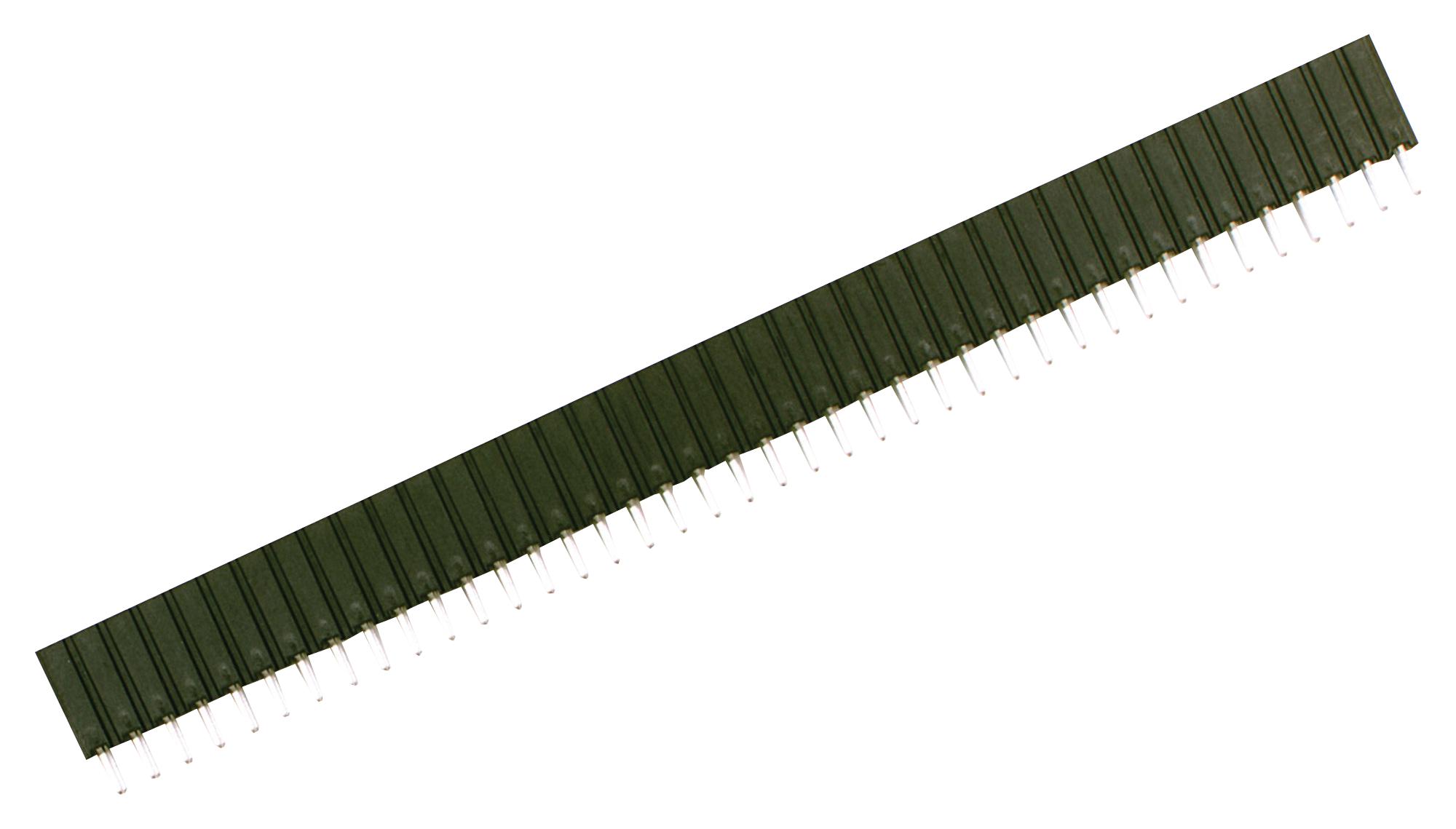

3M 9298500104RA Pin Strip Header
The product is a high-quality pin strip header designed for reliable electrical connections on printed circuit boards. It features single and dual row configurations with 0.100 inch, 0.235 inch, or 0.318 inch mating lengths, available in straight or right-angle versions with solder tails. Manufactured from high-temperature PCT plastic for wave or IR soldering, it offers options for gold, matte tin, or tin-lead plating. Intuitive design includes solder stand-offs and board pin retention features for secure and efficient assembly, suitable for various electronic applications demanding robustness and precision.
3M 9298500104RA Pin Strip Header Specifications:
- Material: Glass Filled Polyester PBT or High Temperature PCT
- Flammability: UL 94V-0
- Color: Black
- Contact Material: Copper Alloy
- Plating: Gold, Matte Tin, or Tin-Lead options
- Insulation Resistance: >5x 10^9Ω at 500V
- Withstanding Voltage: 1500V AC at Sea Level
- Current Rating: 2.5A
- Temperature Rating: -40°C to +105°C
- Process Rating: 260°C (PCT), maximum 191°C (solder wave)
- Moisture Sensitivity Level: Level 1 (per J-STD-020C)
Buy the Buy 3M Pin Strip Header Part Number 9298500104RA Online
Order the 3M pin strip header online today for reliable PCB connections, featuring high-temperature PCT or PBT insulators, various mating lengths, and plated options for enhanced conductivity. Its sturdy design with solder stand-offs and pin retention ensures long-lasting durability and secure fitment in electronic assemblies. Perfect for high-reliability applications, this versatile pin header supports wave or IR soldering processes, making it a practical choice for manufacturing and repair tasks. Purchase now and ensure your electronic projects meet demanding quality standards with easy online ordering.
Get 3M pin strip header 9298500104RA today—designed for precise, secure PCB connections with high temperature resistance and versatile plating options.
Frequently Asked Questions
Where can I buy 3M 9298500104RA?
You can click on the BUY or RFQ button to purchase 9298500104RA from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 9298500104RA?
You can download the 9298500104RA datasheet or visit the 3M website for support.
Who is the manufacturer of 9298500104RA?
3M
