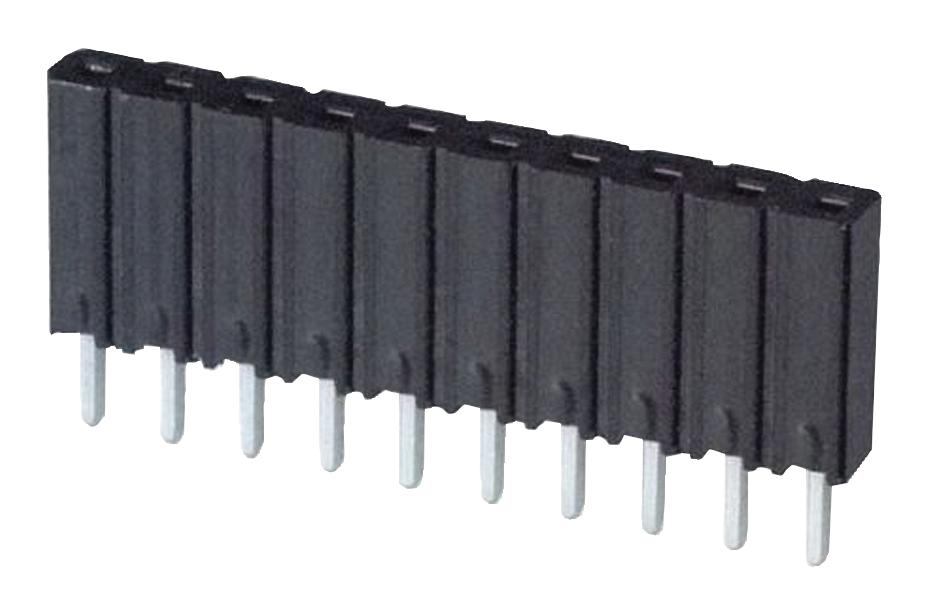

3M 9298500108RA Boardmount Socket
The 3M Boardmount Socket from the 929 Series is a reliable electronic connector designed for easy PCB mounting with straight solder tails. It features a tuning fork contact design, solder standoffs for wave soldering, and an optional board retention feature. Made of glass-filled polyester with UL 94V-0 flammability rating, it offers exceptional electrical performance with a maximum current of 2 amps per line, insulation resistance over 5 x 10^10 ohms, and withstand voltage of 1500 V at sea level. Suitable for applications requiring durable, high-quality connections in electronic systems.
3M 9298500108RA Boardmount Socket Specifications:
- Material: Glass Filled Polyester (PCT)
- Flammability: UL 94V-0
- Color: Black
- Contact Material: Copper Alloy
- Plating: 100 micrometers Nickel, optional gold or matte tin
- Insulation Resistance: >5 x 10^10 ohms at 500 V
- Current Rating: 2 amps maximum per line
- Withstanding Voltage: 1500 V at sea level
- Temperature Rating: -40°C to +105°C
- Process Rating: 260°C maximum for wave soldering, maximum insulator temperature 191°C
- Dimensions: Range from 0.20 inches (5.08 mm) to 4.00 inches (101.60 mm) depending on contact quantity and configuration
Buy the Buy 3M Boardmount Socket Part Number 9298500108RA Online
Purchase the 3M Boardmount Socket from the 929 Series online today and enhance your electronic assembly with a reliable, high-quality connector featuring straight solder tails, tuning fork contact design, and an optional board retention feature. Designed for PCB applications, it offers excellent electrical performance, high current capacity, and superior insulation resistance. Made from UL 94V-0 rated material, it withstands high temperatures and is suitable for wave soldering processes, ensuring your projects are both durable and efficient. Easy to install and built for long-term reliability.
Buy 3M 9298500108RA boardmount socket now and experience durable, high-reliability electronic connections with optional retention for secure mounting.
Frequently Asked Questions
Where can I buy 3M 9298500108RA?
You can click on the BUY or RFQ button to purchase 9298500108RA from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 9298500108RA?
You can download the 9298500108RA datasheet or visit the 3M website for support.
Who is the manufacturer of 9298500108RA?
3M
