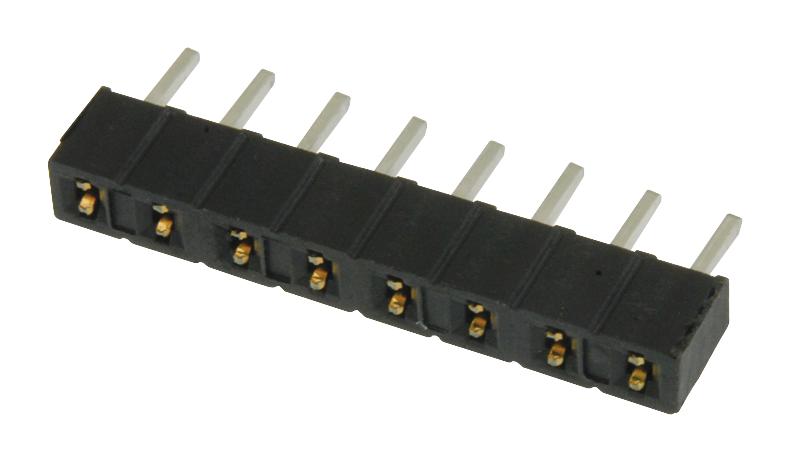

3M 9298700102RA Pin Header
The 3M™ Pin Strip Header Single and Dual Row 929 Series features high-temperature plastic insulators, gold, matte tin, or tin-lead plating, and solder tails suitable for wave or IR soldering. These stackable headers are designed for reliable electrical connections with a current rating of 2.5A and insulation resistance over 5x 10^9Ω at 500V. They support a temperature range of -40°C to +105°C, with optional board pin retention, meeting UL 94V-0 flammability standards, and are compliant with EU RoHS directives. Available in straight and right-angle configurations, with various mating lengths and pin counts for versatile applications.
3M 9298700102RA Pin Header Specifications:
- Insulation Material: Glass Filled Polyester or High Temperature PCT
- Flammability: UL 94V-0
- Color: Black
- Contact Material: Copper Alloy
- Plating Options: Gold, Matte Tin, Tin-Lead
- Insulation Resistance: >5x 10^9Ω at 500V
- Current Rating: 2.5A
- Withstanding Voltage: 1500V AC at Sea Level
- Temperature Rating: -40°C to +105°C
- Process Rating: 260°C for PCT, maximum insulator temperature 191°C
- Moisture Sensitivity Level: Level 1
- UL File No.: E68080
Buy the Buy 3M Pin Strip Header Part Number 9298700102RA Online
Purchase the 3M Pin Strip Header in single and dual row configurations online for dependable electrical connections in various electronic applications. This high-temperature header features optional gold, tin, or tin-lead plating, with straight or right-angle options, and solder tails compatible with wave or IR soldering processes. Its rugged design supports operating temperatures down to -40°C and up to +105°C. Perfect for engineers needing reliable headers with board pin retention options, meeting stringent UL and RoHS standards for safety and environmental compliance.
Buy 3M 9298700102RA now and experience unmatched reliability and performance with high-temperature, stackable pin headers for versatile electronic connections.
Frequently Asked Questions
Where can I buy 3M 9298700102RA?
You can click on the BUY or RFQ button to purchase 9298700102RA from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 9298700102RA?
You can download the 9298700102RA datasheet or visit the 3M website for support.
Who is the manufacturer of 9298700102RA?
3M
