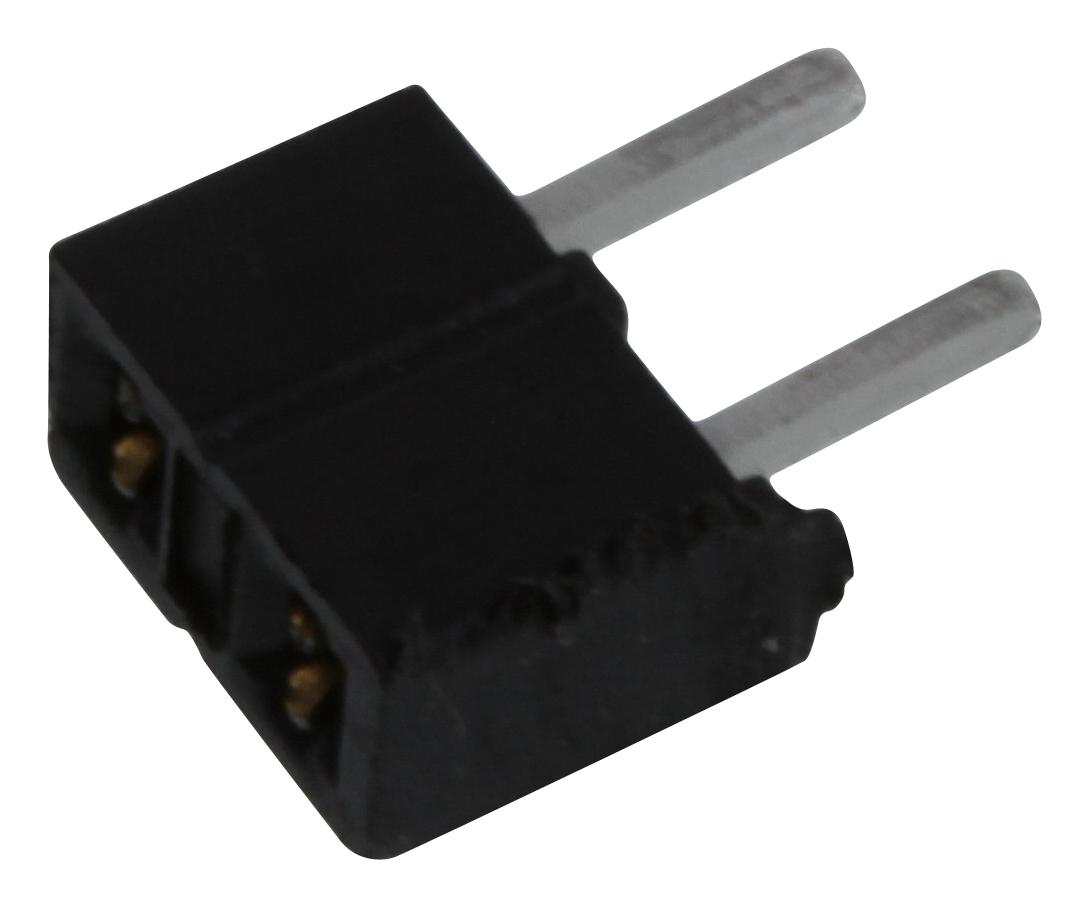

3M 9298700102RB Boardmount Socket
The 3M Boardmount Socket offers a low profile, straight design with solder tails, ideal for board stacking with a thickness of only .150 inches. It features a tuning fork contact design for reliable connections, with a contact material of copper alloy plated in nickel and options for gold, tin lead, or matte tin. Its insulation is made of glass-filled polyester or high-temperature nylon, UL 94V-0 rated, and supports current ratings up to 1A. The socket withstands voltages up to 1000 VRMS and operates effectively between -40°C to 105°C, making it suitable for various electronic assembly applications.
3M 9298700102RB Boardmount Socket Specifications:
- Material: Glass Filled Polyester or High Temperature Nylon
- Flammability: UL 94V-0
- Color: Black
- Contact Material: Copper Alloy
- Plating Options: Gold, Tin Lead, Matte Tin
- Insulation Resistance: > 1 x 10^9Ω at 500 VDC
- Withstanding Voltage: 1000 VRMS at Sea Level
- Temperature Rating: -40°C to 105°C
- Maximum Molded Insulator Temperature: 191°C (Solder Wave Process)
- Current Rating: 1A
- Solder Tails: Facilitates wave soldering
- Physical Dimensions: Length varies with contact size, typical tail length approximately 4.0 mm
Buy the 3M Series 929 Boardmount Socket: 9298700102RB
Purchase the 3M Series 929 Boardmount Socket online today and enhance your electronic assembly. Its low profile, straight design, and solder tails make it ideal for stacking closer than .150 inches. Constructed with durable materials like glass-filled polyester or high-temperature nylon, it supports up to 1A current and withstands voltages up to 1000 VRMS. Its reliable tuning fork contact design ensures secure connections, while its insulation compliance and temperature resilience make it perfect for demanding electronic applications. Order now for quick delivery!
Buy 3M 9298700102RB now and experience unmatched reliability and performance in electronic board mounting and stacking applications.
Frequently Asked Questions
Where can I buy 3M 9298700102RB?
You can click on the BUY or RFQ button to purchase 9298700102RB from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 9298700102RB?
You can download the 9298700102RB datasheet or visit the 3M website for support.
Who is the manufacturer of 9298700102RB?
3M
