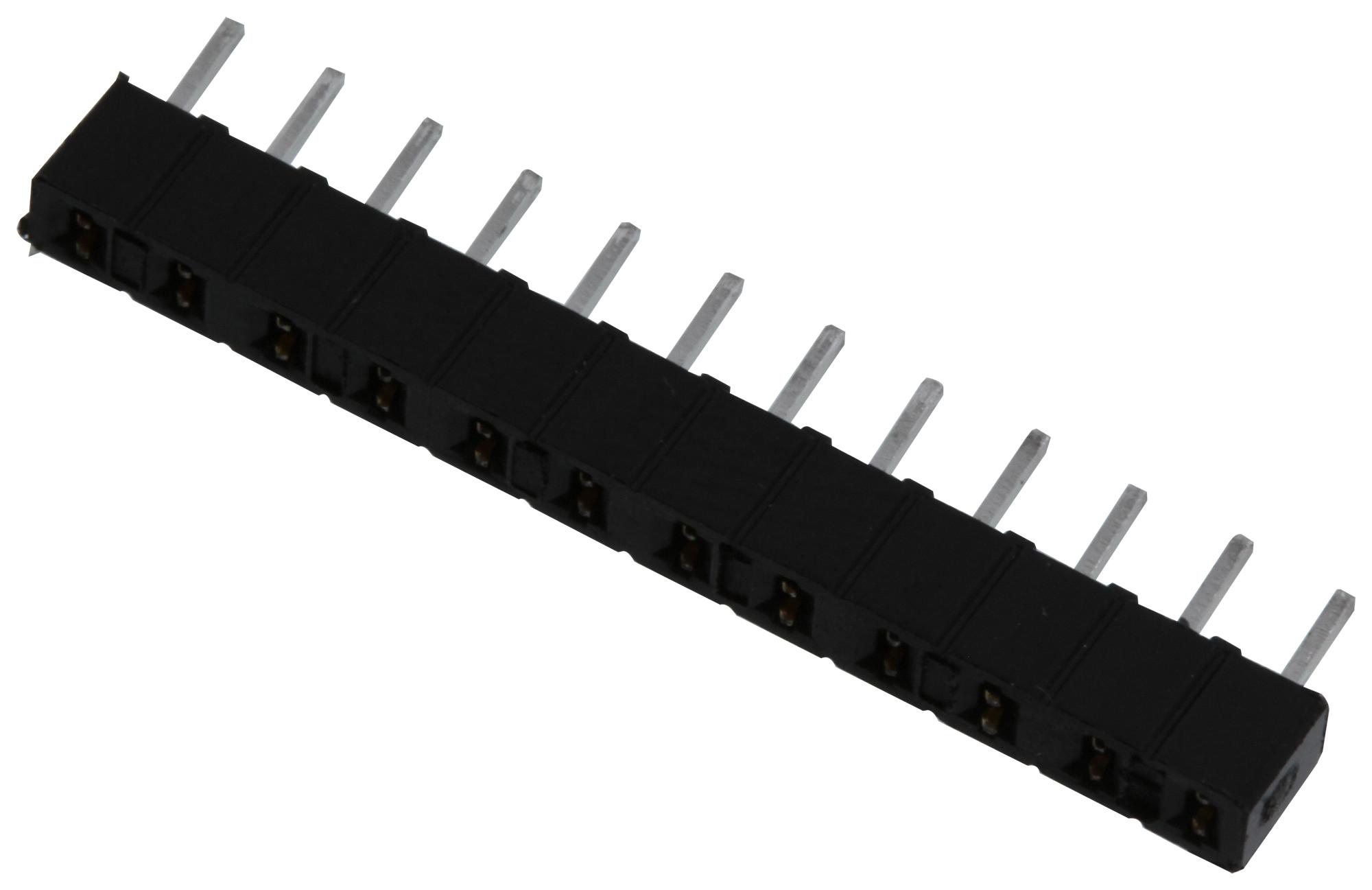

3M 9298700112RA Boardmount Socket
The 3M Boardmount Socket from the 929 Series offers reliable electrical interconnection for electronics applications. Constructed with a glass-filled polyester insulator and copper alloy contacts, it features tin-lead or matte tin plating options, and complies with RoHS standards. The socket supports up to 2 amps at 65°C ambient, with an insulation resistance greater than 5 x 10^10 ohms at 500 V, and withstands voltage up to 1500 V at sea level. It’s designed for straightforward wave soldering, with optional board retention features and a temperature rating from -40°C to +105°C. This compact and durable socket is ideal for tight circuit board assembly, ensuring secure connections for electronic devices.
3M 9298700112RA Boardmount Socket Specifications:
- Material: Glass Filled Polyester
- Flammability: UL 94V-0
- Contact Material: Copper Alloy
- Plating: Tin Lead or Matte Tin (see options)
- Current Rating: 2 amps maximum at 65°C
- Insulation Resistance: >5 x 10^10 ohms at 500 V
- Withstanding Voltage: 1500 V at Sea Level
- Temperature Rating: -40°C to +105°C
- Process Rating: 260°C (J-STD-020C), maximum molded insulator temperature 191°C
- Color: Black
- Dimensions: .100" and .100" x .100" straight, solder tails
- Insulator Material: PBT
- Certifications: UL 94V-0, RoHS Compliant
- Mounting holes: Suitable for 0.100" x 0.100" pin headers
Buy the 3M Series 929 Boardmount Socket: 9298700112RA
Enhance your circuit assemblies with the reliable and versatile 3M Boardmount Socket from the 929 Series. Designed for easy wave soldering and secure connection, it features a durable glass-filled polyester insulator, copper alloy contacts with tin-lead or matte tin plating, and supports up to 2 amps at 65°C. Its compact design fits tight spaces, with optional board retention for added security. Ideal for electronics manufacturing, this socket ensures electrical integrity and compliance with RoHS standards, offering dependable performance for your electronic projects.
Get 3M 9298700112RA today—built for precision and long-lasting durability in electronic connections.
Frequently Asked Questions
Where can I buy 3M 9298700112RA?
You can click on the BUY or RFQ button to purchase 9298700112RA from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 9298700112RA?
You can download the 9298700112RA datasheet or visit the 3M website for support.
Who is the manufacturer of 9298700112RA?
3M
