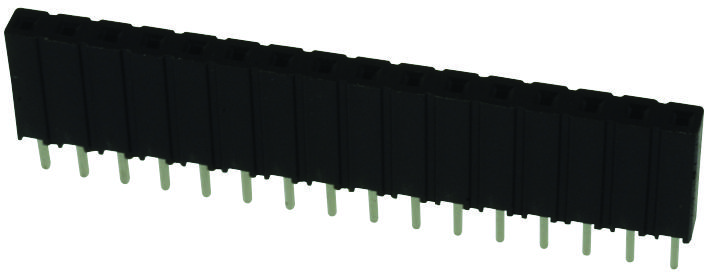

3M 9299740110RK Boardmount Socket
The 3M 929974-01-10-RK boardmount socket provides a robust and versatile solution for connecting electronic components. Constructed with a glass-filled polyester (PCT) insulator and copper alloy contacts, this socket is designed for durability and reliable performance in a variety of applications. The tuning fork contact design ensures consistent contact pressure, while solder standoffs facilitate efficient wave soldering. Available with various plating options, including tin-lead and matte tin, this socket caters to diverse needs. It is suitable for applications in electronics, telecommunications, and industrial equipment, offering a secure and dependable connection for a wide range of devices.
3M 9299740110RK Boardmount Socket Specifications:
- Material: Glass Filled Polyester (PCT)
- Flammability: UL 94V-0
- Contact Material: Copper Alloy
- Plating: Nickel, Tin Lead or Matte Tin
- Current Rating: 2 amps maximum
- Insulation Resistance: > 5 × 10[9] Ω at 500 VDC
- Withstanding Voltage: 1,500 VRMS at Sea Level
- Temperature Rating: -40ºC to +105ºC
- Process Rating: 260ºC (per J-STD-020C)
- UL File No.: E68080
- Contact Quantity: 1-40 contacts on single row, 2-80 contacts on two row
Buy the 929974-01-10-RK 3M Boardmount Socket | myMectronic
Purchase the 3M 929974-01-10-RK Boardmount Socket securely and efficiently through our online store.
Buy Now
Frequently Asked Questions
Where can I buy 3M 9299740110RK?
You can click on the BUY or RFQ button to purchase 9299740110RK from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 9299740110RK?
You can download the 9299740110RK datasheet or visit the 3M website for support.
Who is the manufacturer of 9299740110RK?
3M
