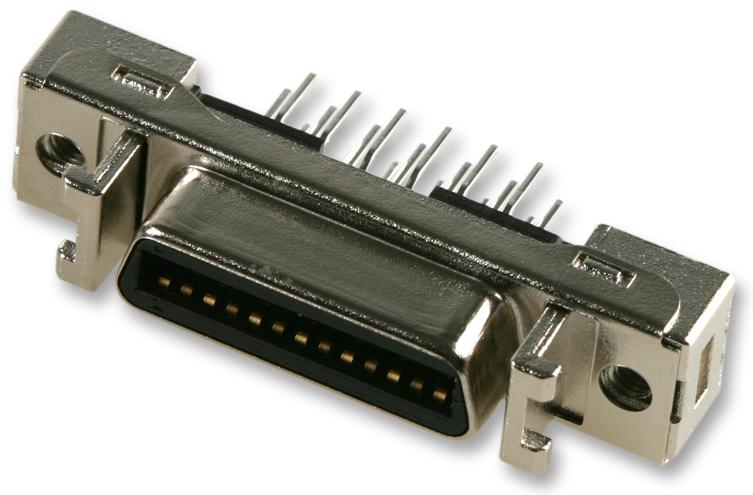

3M 102146212PL Mini D Ribbon Connector
3M's Mini D Ribbon (MDR) connectors are designed for reliable and robust connections in a variety of applications. These connectors feature wiper-on-wiper contact technology, ensuring consistent performance even with repetitive plugging. The rugged die-cast metal case provides durability, while the screw lockdown mechanism ensures secure PCB retention. The interface latch design further enhances connection stability. Compliant with IEEE 1284C interface, these connectors are available with various contact options to meet diverse needs. They are ideal for industrial automation, data transmission, and other demanding environments where reliable connectivity is essential.
3M 102146212PL Mini D Ribbon Connector Specifications:
- Insulation Material: Glass Filled Polyester (PBT) or Glass Filled Polyester (PCT)
- Flammability: UL 94V-0
- Color: Black (PBT) or Beige (PCT)
- Contact Material: Copper Alloy
- Plating: Nickel underplating, Gold wiping area, Gold flash over Nickel
- Body Material: Zinc Alloy, Steel
- Marking: 3M Logo and Part Number
- Current Rating: 1 A
- Insulation Resistance: > 5 × 10[8] Ω at 500 VDC
- Withstanding Voltage: 500 VRMS for 1 Minute
- Temperature Rating: -20 ° C to +85 ° C
- PBT Insulation Process Rating: Solder Dip Test - 260°C for 10 secs.
- PCT Insulation Process Rating: 260°C (profile per J-STD-020C)
- UL File No.: E68080
- Contact Quantity: 14, 20, 26, 36, 40, 50, 68, 80 and 100
- A Dimension (14 contacts): 0.300 [ 7.62 ]
- B Dimension (14 contacts): 0.93 [ 23.6 ]
- C Dimension (14 contacts): 1.16 [ 29.5 ]
- D Dimension (14 contacts): 0.50 [ 12.6 ]
- E Dimension (14 contacts): 0.77 [ 19.5 ]
