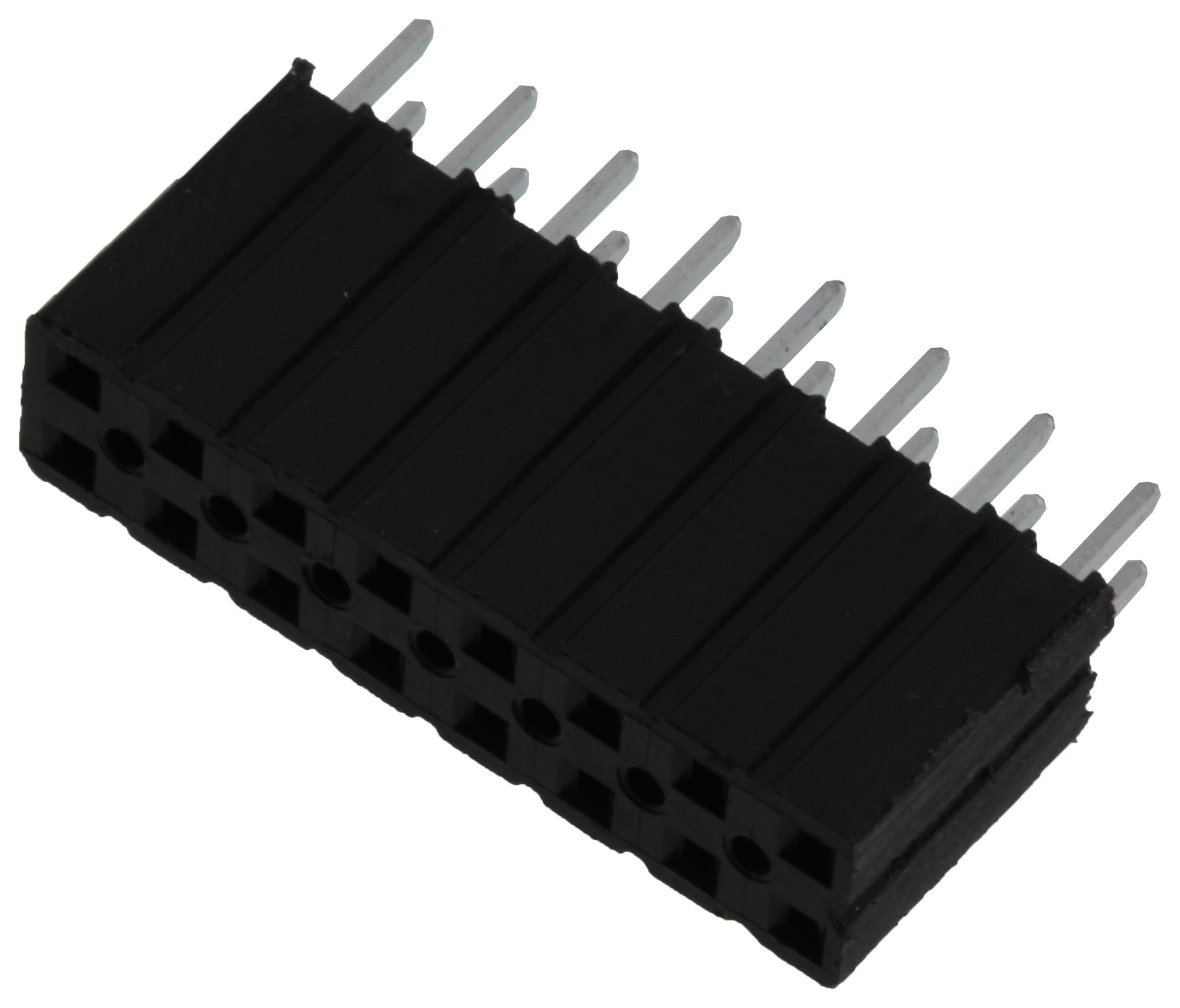

3M 9299750108RK Boardmount Socket
The 3M Boardmount Socket from the 929 Series features .100" and .100" x .100" straight, solder tails with a tuning fork contact design, facilitating reliable connections. This socket supports 1-40 contacts in a single row or 2-80 contacts in dual rows and includes optional board retention for added stability. Constructed with UL 94V-0 flame-rated glass-filled polyester insulator, copper alloy contacts with tin-lead or matte tin plating, it withstands up to 2 amps per line and temperatures from -40°C to +105°C. Designed for wave soldering, these sockets are ideal for high-density board mounting applications, offering durability and ease of manufacturing.
3M 9299750108RK Boardmount Socket Specifications:
- Material: Glass Filled Polyester with UL 94V-0 flammability rating
- Color: Black
- Contact Material: Copper Alloy
- Plating: Tin-Lead or Matte Tin (varies by ordering)
- Insulation Resistance: >5 x 10^10 ohms at 500 V
- Current Rating: 2 amps maximum per line
- Temperature Rating: -40°C to +105°C
- Withstanding Voltage: 1500 V at Sea Level
- Process Temperature: 260°C (max for wave soldering), molded insulator max temp 191°C
- Physical Dimensions: Supports 1-40 contacts in a row, 2-80 in two rows, wire diameter approx. 0.100" (2.54 mm), various length options
- Design: Tuning fork contact, solder standoffs, optional board retention feature
- Certifications: UL Listed (File No.: E68080)
Buy the Buy 3M Boardmount Socket Part Number 9299750108RK Online
Purchase the 3M Boardmount Socket online today to ensure secure, reliable electrical connections in your electronic projects. Featuring a tuning fork contact design and flame-resistant plastic material, this socket supports multiple contact configurations, providing flexibility for your design needs. Its robust construction withstands high temperatures and current loads, making it ideal for manufacturing environments requiring durable interconnect solutions. Order now to benefit from fast shipping and exceptional technical support, guaranteeing smooth integration into your circuit assemblies and demanding electronic applications.
Buy 3M 9299750108RK now and experience unmatched reliability and high-density connection performance.
Frequently Asked Questions
Where can I buy 3M 9299750108RK?
You can click on the BUY or RFQ button to purchase 9299750108RK from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 9299750108RK?
You can download the 9299750108RK datasheet or visit the 3M website for support.
Who is the manufacturer of 9299750108RK?
3M
