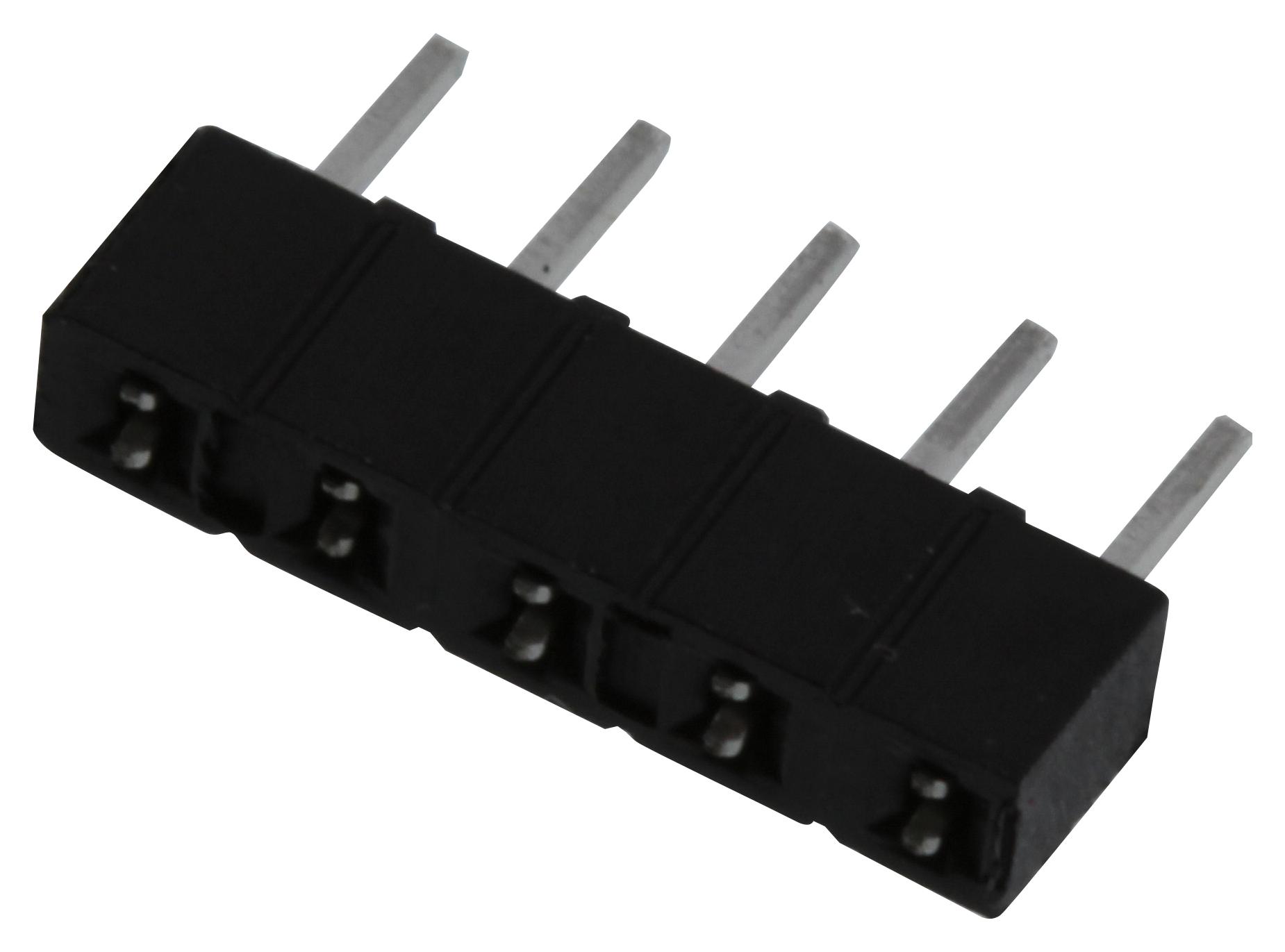

3M 9299840120RK Boardmount Socket
The 3M Boardmount Socket series features a reliable, high-quality connector suitable for industrial applications. Designed with a tuning fork contact structure, it ensures secure connections and efficient wave soldering with optional board retention features. Made from flame-retardant glass-filled polyester, these sockets support currents up to 2 amps and withstand voltages of 1500 V at sea level. They operate within a temperature range of -40°C to +105°C, making them versatile for various electronic assemblies and manufacturing processes, enhancing durability and performance in complex systems.
3M 9299840120RK Boardmount Socket Specifications:
- Material: Glass Filled Polyester, UL 94V-0
- Color: Black
- Contact Material: Copper Alloy
- Plating Options: Tin-Lead, Matte Tin, Gold (varies by option)
- Current Rating: 2 amps maximum per line
- Insulation Resistance: >5 x 10^10 ohms at 500 V
- Withstanding Voltage: 1500 V at Sea Level
- Operating Temperature Range: -40°C to +105°C
- Process Temperature Rating: 260°C (per J-STD-020C), Maximum insulator temperature 191°C
- Physical Dimensions: Length varies with contact quantity, range from 0.20 inch to 4.00 inch, with recommended mounting hole patterns for reliability
- Additional: Tuning fork contact design, solder standoffs for wave soldering, optional board retention feature
Buy the 3M 929 Series U+2013 Reliable Boardmount Connectors for Industrial Applications
Discover the dependable performance of the 3M Series 929 Boardmount Socket, designed for industrial and electronic systems requiring secure connections. Featuring tuning fork contacts, solder tails, and optional board retention, these sockets support currents up to 2 amps and withstand voltages of 1500 V. Made from flame-retardant glass-filled polyester, they operate efficiently within -40°C to +105°C. Their versatile design facilitates wave soldering and ensures durability, making them an ideal choice for manufacturers seeking reliable and high-quality interconnect solutions online.
Order your 3M Series 929 Boardmount Socket today and ensure robust, efficient connections for your electronic projects and industrial systems.
Frequently Asked Questions
Where can I buy 3M 9299840120RK?
You can click on the BUY or RFQ button to purchase 9299840120RK from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 9299840120RK?
You can download the 9299840120RK datasheet or visit the 3M website for support.
Who is the manufacturer of 9299840120RK?
3M
