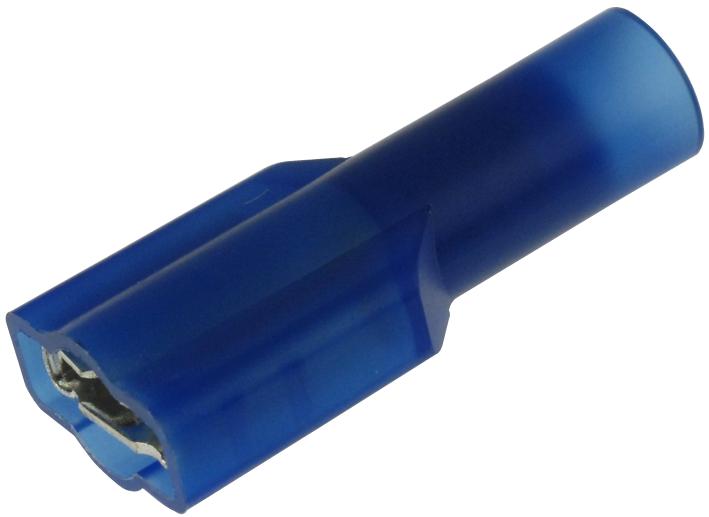

3M FDI14250Q Female Disconnect Terminal
The FDI14-250Q Highland™ female disconnect terminal is a fully insulated, nylon-encased connector with a butted seam and tin-plated brass contacts. Featuring a quick disconnect brass terminal and crimping capability, it accepts wire sizes from 16 to 14 AWG. Designed with a 0.250-inch stud size, it securely grips male tabs with a tongue that slips over the male connection, providing reliable electrical contact. Its insulated nylon sleeve ensures safety and insulation, making it ideal for industrial wiring environments operating at up to 105°C and rated for 600 V building wire or 1000 V fixtures.
3M FDI14250Q Female Disconnect Terminal Specifications:
- Wire Size: 16-14 AWG
- Insulation Material: Nylon
- Terminal Material: Brass, tin plated
- Stud Size: 0.250 inch
- Seam: Butted
- Voltage Rating: 600 V building wire, 1000 V signs or fixtures
- Maximum Temperature: 105°C (221°F)
- Physical Dimensions: Width 0.87 in, Length 0.25 in, Diameter 0.145 in
- Crimp Type: Electrical crimp, recommended tools TH-440, TH-450, TR-490
- Certifications: UL Listed, CSA Certified
- Application: Suitable for factory and field wiring, with strain relief
- Connects to: Male disconnect terminals with tongue size 0.250 x 0.032 inches
Buy the Buy Highland Female Disconnect Part Number FDI14250Q Online
Purchase the Highland female disconnect terminal FDI14250Q online today for secure, insulated, and reliable wire connections. Designed with a nylon insulated sleeve and a butted seam, it features a 0.250-inch stud for mounting and accepts 16-14 AWG wires. Its quick disconnect design with a durable, tin-plated brass contact ensures fast and secure disconnection in industrial and electrical wiring projects. UL Listed and CSA Certified, this terminal offers high performance at up to 105°C, making it an essential component for maintenance and installation tasks where safety and efficiency are paramount.
Buy Highland FDI14250Q female disconnect terminal now and experience reliable, quick, and safe electrical connections for industrial applications.
Frequently Asked Questions
Where can I buy 3M FDI14250Q?
You can click on the BUY or RFQ button to purchase FDI14250Q from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part FDI14250Q?
You can download the FDI14250Q datasheet or visit the 3M website for support.
Who is the manufacturer of FDI14250Q?
3M
