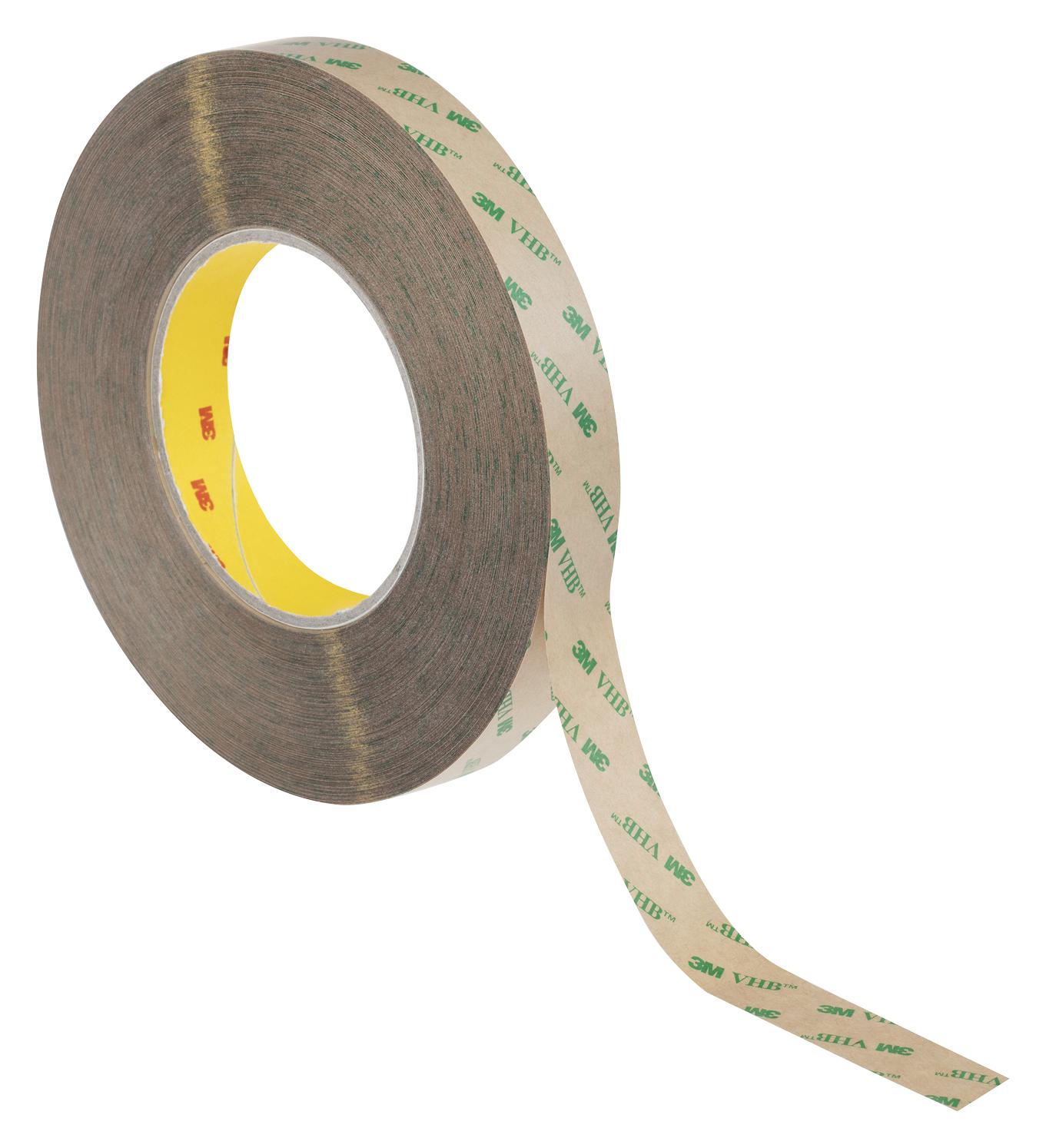

3M 9469PC Industrial Adhesive Tape
3M VHB Adhesive Transfer Tape F9469PC employs high-performance acrylic adhesive 100MP for strong, long-lasting bonds suitable for interior and exterior applications. Its transparent, thermoplastic design allows it to replace rivets, welds, and liquid adhesives, offering excellent durability and high temperature tolerance. The tape features a 0.13 mm adhesive thickness, with a 58# polycoated kraft liner, and maintains adhesive properties over years of exposure to weather, heat, and humidity. Ideal for industries requiring reliable, permanent fastening with high shear and peel strength.
3M 9469PC Industrial Adhesive Tape Specifications:
- Adhesive Thickness: 0.13 mm (5.2 mil)
- Liner: 58# Polycoated Kraft
- Liner Thickness: 0.106 mm (4.2 mil)
- Density: 1.012 g/cm³ (0.04 lb/in³)
- Temperature Rating (Steel, Glass, Ceramic): 110°C
- Temperature Rating (ABS, Polycarbonate, Aluminum): 90°C
- Temperature Rating (Unplasticized PVC): 75°C
- PEel Adhesion: 14 N/cm (180° peel, stainless steel)
- Shear Strength (Static Shear): Supports 250°C for 10,000 min at 100 g static load
- Maximum Long-term Temperature: 149°C (300°F)
- UV Resistance: Excellent outdoor weatherability
- Available Lengths: 55m (60 yd), 220m (240 yd), 330m (360 yd)
- Insulation Resistance: >1 GΩ/in at room temperature
- Thermal Conductivity: 0.16 W/m·K
- Dielectric Strength: 3000 V at room temperature, 2600 V at 125°C
- Outgassing: Total mass loss 1.29%, Volatile condensible 0.02%
Buy the Buy 3M VHB Adhesive Transfer Tape F9469PC Part Number 9469PC Online
Purchase 3M VHB Adhesive Transfer Tape F9469PC online now to benefit from its high-performance acrylic adhesive, excellent weather resistance, and long-term durability. Perfect for replacing rivets, welds, and adhesives in various industries, this transparent tape offers strong peel and shear strength, handling high temperatures and exposure to outdoor elements. Its 55-meter roll ensures you have ample supply for your projects, providing reliable, permanent fastening solutions that maintain their adhesion even after years of weather and temperature cycling. Order today for fast, secure shipping and seamless application.
Get 3M VHB Adhesive Transfer Tape F9469PC today—engineered for strong, reliable bonds in demanding industrial and outdoor environments.
Frequently Asked Questions
Where can I buy 3M 9469PC?
You can click on the BUY or RFQ button to purchase 9469PC from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 9469PC?
You can download the 9469PC datasheet or visit the 3M website for support.
Who is the manufacturer of 9469PC?
3M
