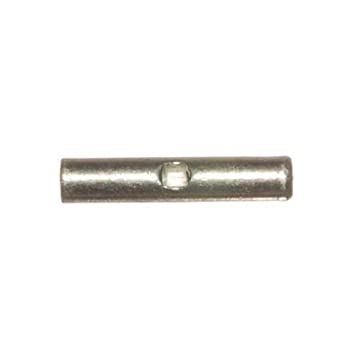

3M 61S Non-Insulated Butt Connector
The 3M 61-S butt connector is a non-insulated, seamless connector crafted from tin-plated, annealed copper. Its double-length, round seamless barrel with a center stop is designed to permanently connect to the pre-stripped end of stranded copper wires. This connector is ideal for various electrical applications, including building wire and signs or fixtures, and is rated for a maximum voltage of 600 volts. It's a reliable solution for creating secure and lasting electrical connections in diverse industrial settings.
3M 61S Non-Insulated Butt Connector Specifications:
- Wire Range: 22-18, 16-14, 12-10 AWG
- Barrel Thickness: See Table Above
- Barrel Length: See Table Above
- Barrel ID: See Table Above
- Terminal Material: ETP Copper
- Terminal Plating: Tin
- Maximum Current: Same as Wire
- Crimp Tool: TH-440, TH-450, TR-490
- Barrel Seam: Seamless
- UL Listing: UL Listed
- CSA Certification: CSA Certified
- Voltage Rating: 600 Volts Maximum
- Temperature Rating: 221°F (105°C) Maximum
Buy the 61-S 3M Non-Insulated Butt Connector | myMectronic
Purchase the 3M 61-S butt connector securely online for reliable electrical connections.
