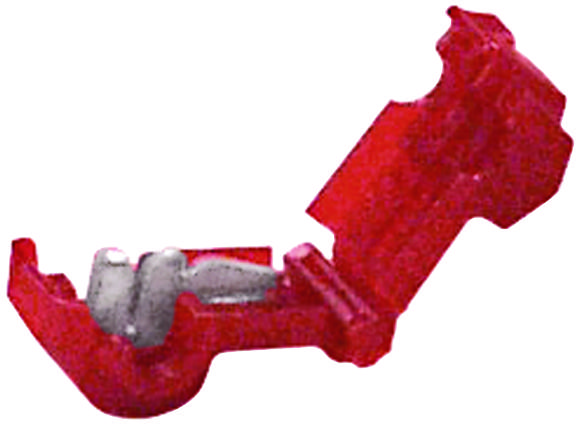

3M 951XBOTTLE Self-Stripping Electrical Tap Connectors
3M Scotchlok Self-Stripping Electrical Tap Connectors provide a convenient and reliable method for electrically tapping into a wire without the need for cutting or stripping. Designed for mid-span connections, these connectors mate with a .250” male tab, forming a reusable quick-connect wiring termination. They are suitable for a range of applications, including building wire and signs or luminaries, and are UL Listed and RoHS compliant. The connectors are ideal for both field and factory installations, offering a secure and efficient wiring solution.
3M 951XBOTTLE Self-Stripping Electrical Tap Connectors Specifications:
- Max Voltage Rating: 600 V Building Wire, 1000 V Signs or Fixtures
- Max Operating Temp: 221°F (105°C)
- Insulator Material: Flame retardant nylon
- Element Material: Tin plated brass, .03 in. thick
- Flammability Rating: C2.2 No. 0.6 V-2
- Wire Range: 22-12 AWG solid or stranded (.5-3.0 mm)
- Insulation Diameter: ≤ .150” (3,8 mm)
- Current Rating (22 AWG): 3.0 AMPS
- Current Rating (20 AWG): 4.0 AMPS
- Current Rating (18 AWG): 7.5 AMPS
- Current Rating (16 AWG): 10 AMPS
- Current Rating (14 AWG): 15 AMPS
- Current Rating (12 AWG): 20 AMPS
- Connector Weight (951): .0023 lb./gm (1,04)
- Connector Weight (952): .0023 lb./gm (1,04)
- Connector Weight (953): .0022 lb./gm (1,00)
