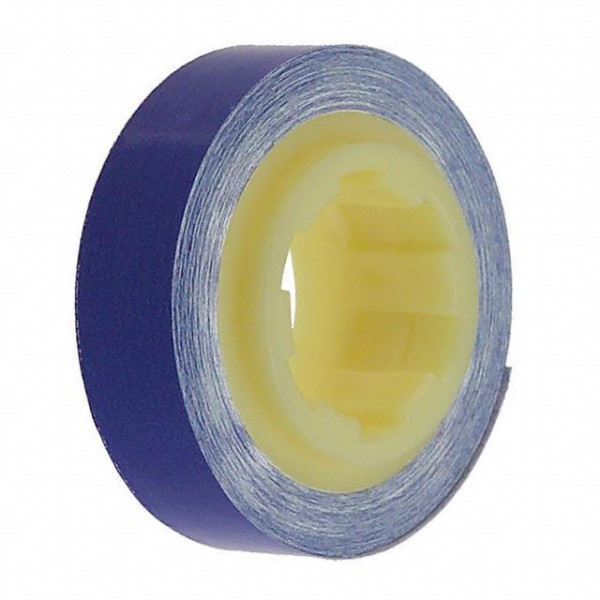

3M SDRBL Wire Marking Tape Roll
3M ScotchCode SDR wire marking tape is a versatile solution for identifying and organizing wires and cables in various industrial and commercial applications. This polyester film tape features a pressure-sensitive acrylic adhesive, ensuring reliable adhesion to a range of surfaces. Designed for use with 3M ScotchCode STD tape dispensers, the SDR tape simplifies the marking process, allowing for quick and accurate identification of wires, terminal blocks, and panels. Its robust construction and temperature resistance make it suitable for demanding environments, contributing to efficient maintenance and troubleshooting.
3M SDRBL Wire Marking Tape Roll Specifications:
- Material: Polyester film with acrylic pressure sensitive adhesive
- Application Temperature Range: 32°F to 120°F (0°C to 49°C)
- Operating Temperature Range: –40°F to 250°F (–40°C to 121°C)
- Storage Temperature: <br>80°F (26°C) (Relative Humidity) 25–50%
- Tape Roll Width: 0.215 inches (5,46 mm)
- Tape Roll Length: 96 inches (2,43 m)
- Number of Characters: 6 per inch (6 per 2,54 cm)
- Tape Thickness: 3 mils (0,08mm)
- Adhesion to Steel: 25 oz./inch width (273 Newtons/Meters)
- Adhesion to Backing: 10 oz./inch width (109 Newtons/Meters)
- Roll Core Diameter: .38 inch (9,65mm)
Buy the SDR-BL 3M Wire Marking Tape Roll | myMectronic
Purchase the 3M SDR-BL Wire Marking Tape Roll securely and efficiently for all your wire identification needs.
Buy Now
Frequently Asked Questions
Where can I buy 3M SDRBL?
You can click on the BUY or RFQ button to purchase SDRBL from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part SDRBL?
You can download the SDRBL datasheet or visit the 3M website for support.
Who is the manufacturer of SDRBL?
3M
