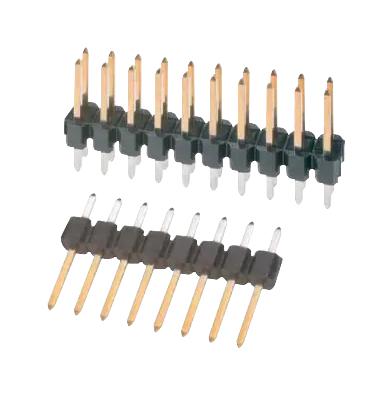

3M 9611366804AR Pin Header Connector
The 3M Pin Strip Header is a reliable electrical connector designed for industrial and electronic applications. Featuring a 2.54 mm pitch with both straight and solder tail options, it offers high-temperature dielectric insulation and RoHS compliance. With single and dual row configurations, it mates seamlessly with boardmount and wiremount products. Made from high-temperature thermoplastic with copper alloy contacts, the connector supports up to 2A current, withstands voltage of 1000V, and is suitable for -25°C to +105°C operating temperatures. Ideal for securing reliable, soldered connections in complex electronic assemblies.
3M 9611366804AR Pin Header Connector Specifications:
- Insulation Material: High Temperature Thermoplastic
- Flammability: UL 94V-0
- Color: Black
- Contact Material: Copper Alloy
- Plating: Flash Gold
- Underplating: Nickel
- Wiping Area: 1-3 pm (40-118 p") Matte Tin
- Solder Tail Area: Compatible with wave and reflow soldering
- Current Rating: 2A
- Insulation Resistance: > 5 x 10^10 Ohm at 100 V
- Withstanding Voltage: 1000 V
- Temperature Range: -25°C to +105°C
- Processing Temperature: Max. 260°C (Profile per J-STD-020C)
- Moisture Sensitivity Level: 1
- Physical Dimensions: 2.54 mm pitch, with optional lengths of 6.5mm or 6.8mm for mating pin length
- Configuration: Single or dual row, 2-36 or 4-72 pins
Buy the 3M 9611366804AR – Reliable Pin Header for Industrial Applications
Discover the dependable 3M Pin Strip Header designed for industrial and electronic applications, featuring a 2.54 mm pitch, high-temp thermoplastic, and RoHS compliance. Its durable construction with copper alloy contacts, gold plating, and compatibility with wave and reflow soldering make it ideal for reliable wire-to-board connections. Supports up to 2A current, withstands 1000V, and operates in temperatures from -25°C to +105°C. Choose this versatile connector for secure, high-performance electronic assemblies that meet industry standards.
Order your 3M Series 9611366804AR pin strip header today and ensure secure, high-quality connections in your electronic projects.
Frequently Asked Questions
Where can I buy 3M 9611366804AR?
You can click on the BUY or RFQ button to purchase 9611366804AR from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 9611366804AR?
You can download the 9611366804AR datasheet or visit the 3M website for support.
Who is the manufacturer of 9611366804AR?
3M
