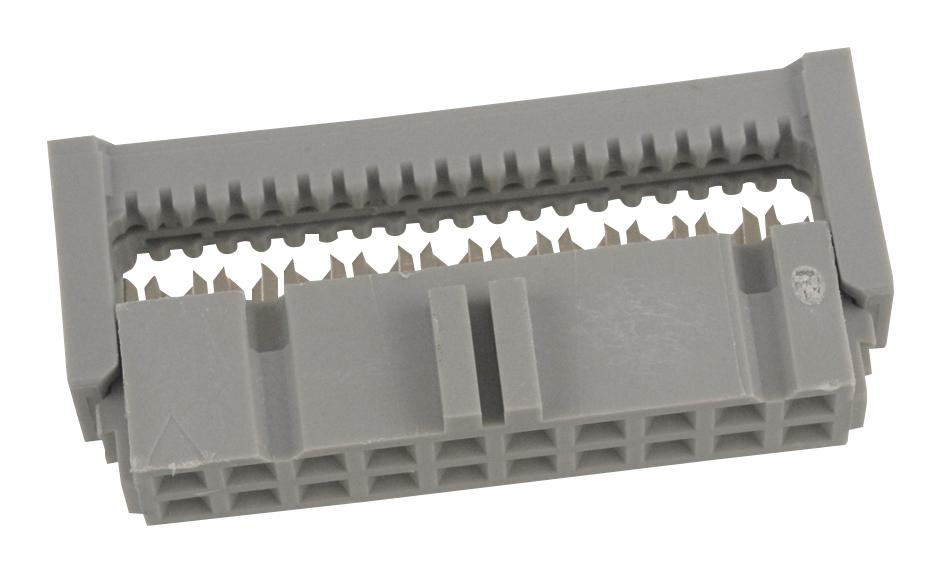

3M D891400101HK Ribbon Cable Socket
The 3M IDC Ribbon Cable Socket D89 Series is designed for 0.100-inch by 0.100-inch pitch cables, accommodating 26 and 28 AWG stranded wires. Made from glass-filled polyester with UL 94V-0 flammability rating, it features nickel and gold plated phosphor bronze contacts for reliable electrical connections. The socket supports a current rating up to 4.50 amps with insulation resistance of 1.75 to 2.25 gigaohms and withstands voltages up to 1000V at sea level. It operates in temperatures from -55°C to +105°C, ensuring durability in various environments.
3M D891400101HK Ribbon Cable Socket Specifications:
- Material: Glass Filled Polyester
- Flammability: UL 94V-0
- Color: Gray
- Contact Material: Phosphor Bronze
- Contact Plating: 50µin Nickel, 15µin Gold
- Wire Accommodation: 26 and 28 AWG Stranded
- Current Rating: Up to 4.50A
- Insulation Resistance: 1.75 to 2.25 GΩ
- Withstanding Voltage: 1000V at Sea Level
- Temperature Rating: -55°C to +105°C
Buy the 3M D891400101HK – Reliable Ribbon Cable Socket for Industrial Applications
Purchase the 3M Ribbon Cable Socket D89 Series online for dependable performance in industrial wiring, with easy preassembly and reliable electrical contact. This socket is made from high-quality glass-filled polyester, supporting a wide temperature range from -55°C to +105°C. It accommodates 26 and 28 AWG stranded wires, with nickel and gold-plated contacts ensuring excellent conductivity and corrosion resistance. Suitable for various environments, it withstands voltages up to 1000V and currents up to 4.50A, making it a perfect choice for robust electronic connections and assembly automation.
Get 3M D891400101HK today—built for precision and long-lasting durability in industrial connectivity solutions.
Frequently Asked Questions
Where can I buy 3M D891400101HK?
You can click on the BUY or RFQ button to purchase D891400101HK from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part D891400101HK?
You can download the D891400101HK datasheet or visit the 3M website for support.
Who is the manufacturer of D891400101HK?
3M
