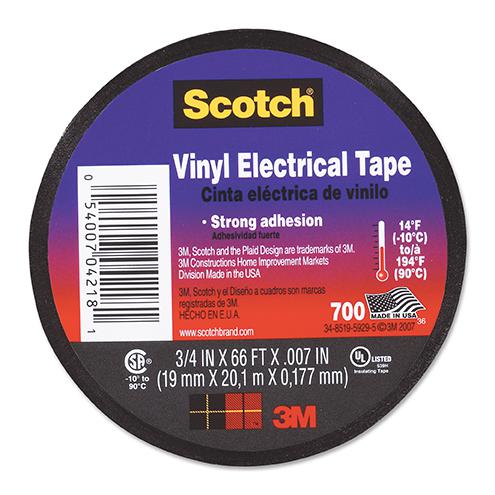

3M 70019MM Vinyl Electrical Tape
Scotch® Commercial Grade Vinyl Electrical Tape 700 is a durable, high-quality vinyl insulating tape designed for electrical insulation, cable splicing, and wire harnessing. It offers excellent resistance to abrasion, moisture, chemicals, and weather conditions, making it suitable for indoor and outdoor use. The tape is UL listed, CSA certified, flame-retardant, and features a rubber-based pressure-sensitive adhesive. With a thickness of 7 mils and a temperature rating of up to 80°C, it ensures reliable, long-lasting electrical protection for wire and cable applications up to 600 volts and 80°C. Its ease of application and robust performance make it ideal for demanding electrical tasks.
3M 70019MM Vinyl Electrical Tape Specifications:
- Color: Black
- Thickness: 7 mils (0.177 mm)
- Temperature Rating: UL 510 80°C (176°F), continuous operation 90°C (194°F), handling -10°C (14°F)
- Adhesion to Steel: 25 oz/in (2.7 N/cm)
- Adhesion to Backing: 19 oz/in (2.1 N/cm)
- Breaking Strength: 15 lbs/in (26 N/10 mm)
- Elongation: 225%
- Flammability: UL 510 Pass
- Dielectric Breakdown: >1,000 V/mil
- Insulation Resistance: >10^9 Megohms
- Application: Wrap in half-lapped layers, suitable for indoor and outdoor cable splicing, wire harnessing, and high-voltage repairs
- Shelf Life: 5 years from manufacture in humidity-controlled storage
- Agency Approvals: UL Listed, CSA Certified, RoHS Compliant
Buy the 3M Series Vinyl Electrical Tape 700: Part 70019MM
Purchase the 3M Vinyl Electrical Tape 700 today online and ensure reliable electrical insulation, moisture resistance, and weatherproofing for your wire splicing and cable protection needs. This high-quality tape offers excellent adhesion, flame retardancy, and durability, making it ideal for both indoor and outdoor electrical projects up to 600 volts and 80°C. Its easy application and long shelf life support efficient and safe electrical work. Get your supply now online for fast delivery and professional-grade performance in every job.
Buy 3M Vinyl Electrical Tape 700 now and experience unmatched durability, weather resistance, and electrical insulation for demanding wiring applications.
Frequently Asked Questions
Where can I buy 3M 70019MM?
You can click on the BUY or RFQ button to purchase 70019MM from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 70019MM?
You can download the 70019MM datasheet or visit the 3M website for support.
Who is the manufacturer of 70019MM?
3M
