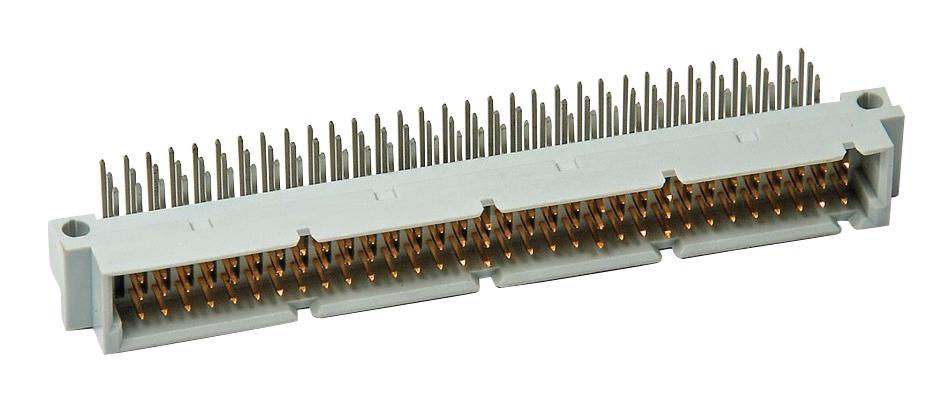

3M DIN096CPCRR1HM DIN C Form Connector
The 3M DIN C Form Plug series offers right angle, solder tail termination connectors compatible with DIN 41612 standards, featuring expanded pin counts and optional retention clips. These multi-pin sockets are suitable for VME, VXI, and Multibus IT daughter cards, with early mate late break grounding contacts for hot swapping. Made from glass-filled polyester with UL 94V-0 flammability rating, they support current ratings of 3.0A, voltage withstand of 1,000V, and operate in temperatures between -55°C and 125°C, ensuring reliability in demanding electronic applications.
3M DIN096CPCRR1HM DIN C Form Connector Specifications:
- Material: Glass-filled polyester, Copper alloy contacts with nickel plating
- Flammability: UL 94V-0
- Color: Gray
- Contact Resistance: <20mΩ
- Insulation Resistance: >1,000 MΩ
- Withstanding Voltage: 1,000 V for 1 minute
- Current Rating: 3.0A at 30°C
- Temperature Rating: -55°C to 125°C
- Maximum Insulator Temperature: 191°C (solder wave process only)
- Physical Dimensions vary by model, with pin counts from 16 to 130, various insertion and retention options, compliant with DIN 41612 standards
Buy the 3M Series DIN C Form Plug: DIN096CPCRR1HM
Discover the dependable and versatile 3M DIN C Form Connector, designed for high pin count applications with durable materials and optional retention clips. Perfect for VME, VXI, and Multibus cards, these connectors meet DIN 41612 standards, featuring solder tail termination, reliable plating, and excellent electrical ratings. Suitable for demanding environments, they support temperature ranges from -55°C to 125°C and have current capacity of 3A. Enhance your electronic systems with proven reliability—order your DIN C Form Plug today for efficient, secure, and long-lasting connections.
Order your 3M Series DIN C Form Plug today and upgrade your electronic connectors with reliable DIN 41612 compatibility and high pin-density options.
Frequently Asked Questions
Where can I buy 3M DIN096CPCRR1HM?
You can click on the BUY or RFQ button to purchase DIN096CPCRR1HM from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part DIN096CPCRR1HM?
You can download the DIN096CPCRR1HM datasheet or visit the 3M website for support.
Who is the manufacturer of DIN096CPCRR1HM?
3M
