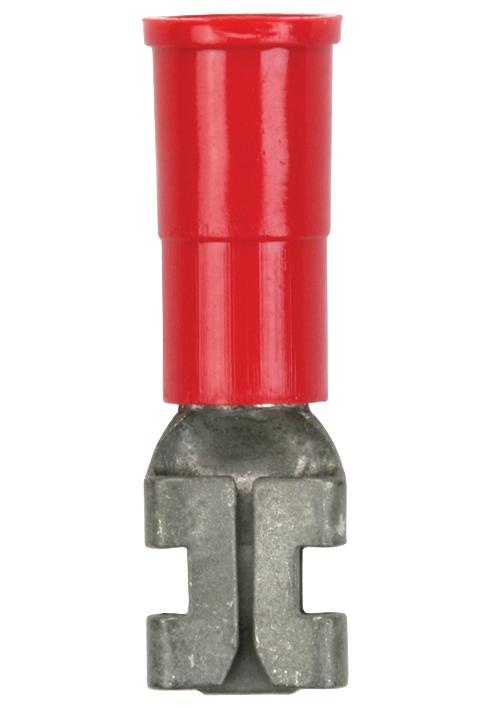

3M MVU18187DFX Female Disconnect Vinyl Insulated
The 3M™ Scotchlok™ Female Disconnect Vinyl Insulated (MVU18-187DFX) provides a reliable and insulated termination solution for electrical wires. Designed for use with conductors ranging from 22 to 18 AWG, this female disconnect offers a secure connection and is commonly used in electronics, electrical, and communication applications. Its vinyl insulation provides added protection and durability. The product is packaged 100 per bottle, making it suitable for both small and large-scale projects.
3M MVU18187DFX Female Disconnect Vinyl Insulated Specifications:
- Barrel Inside Diameter: 0.085 Inch
- Barrel Length: 0.25 Inch
- Barrel Style: Butted
- Brand: Scotchlok
- China RoHS: Below MCV No
- Conductor Sizes: 22 - 18 AWG
- CSA File Number: LR22190
- EU RoHS Compliant: Yes
- Fastener Orientation: Female
- Insulation Material: Vinyl
- Length (L): 0.78 Inch
- Mates with Male Tab Width (W'): 0.187 Inch
- Maximum Insulation Outer Diameter: 0.145 Inch
- Packaging: 100 per bottle
- Pad Width: 0.187 Inch
- Terminal Style: Standard
- Terminal Type: Disconnect
- Thickness: 0.02 Inch
- UL File Number: E70512
Buy the MVU18-187DFX 3M Female Disconnect Vinyl Insulated | myMectronic
Purchase the 3M MVU18-187DFX Female Disconnect Vinyl Insulated securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy 3M MVU18187DFX?
You can click on the BUY or RFQ button to purchase MVU18187DFX from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part MVU18187DFX?
You can download the MVU18187DFX datasheet or visit the 3M website for support.
Who is the manufacturer of MVU18187DFX?
3M
