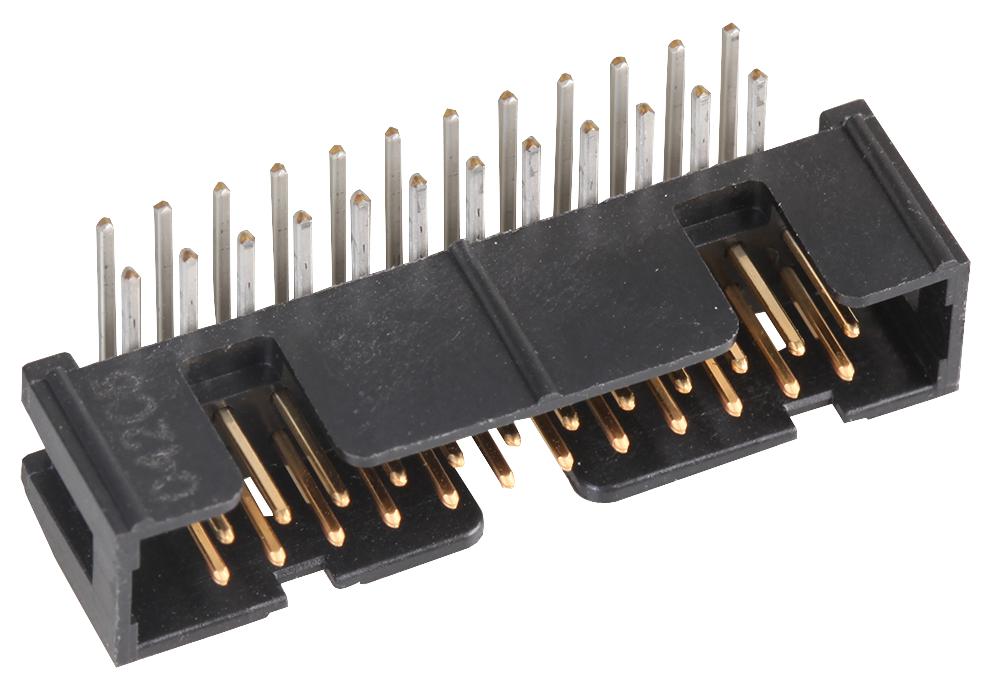

3M N25245002RB Four Wall Connector
The 3M Four-Wall Header is a high-quality, low profile SMT and through-hole connector designed for reliable electrical connections in various electronic applications. Featuring a space-saving design and polarization to prevent mis-insertions, it offers compatibility with multiple polarization types, optional locking clips, and high-temperature insulators suitable for lead-free and reflow soldering processes. Constructed with durable materials like glass-filled polyester and copper alloy contacts, it provides excellent electrical performance with current ratings up to 5A per contact and withstands temperatures from -55°C to +105°C. A versatile choice for compact, vibration-resistant electronic assemblies.
3M N25245002RB Four Wall Connector Specifications:
- Insulator Material: Glass Filled Polyester (PBT) or (PCT) with High Temperature Option
- Flammability: UL 94V-0
- Color: Gray (PBT) or Black (PCT)
- Contact Material: Copper Alloy
- Plating: Gold on wiping area, Tin Lead or Matte Tin on solder tails, with Underplating of 100" Nickel
- Current Rating: 5A per contact (single powered contact), 3A for six contacts, 1.75A for all contacts
- Withstanding Voltage: 1000V at sea level
- Insulation Resistance: >1 x 10^9 Ω at 500V
- Temperature Range: -55°C to +105°C
- Process Rating: High Temp PCT insulator up to 260°C, PBT insulator up to 191°C
- Moisture Sensitivity Level: 1
- UL File Number: E68080
