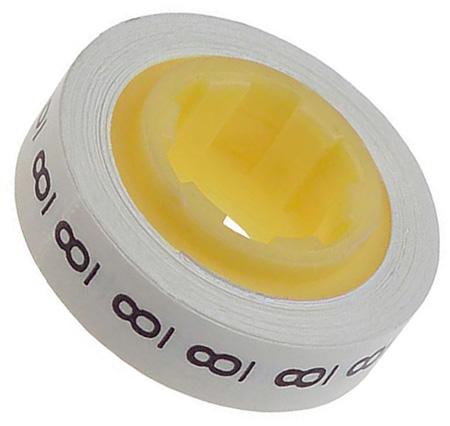

3M SDR8 Wire Marking Tape
3M ScotchCode SDR wire marking tape is a versatile solution for identifying and organizing wires and cables in various industrial and commercial applications. This polyester film tape features a pressure-sensitive acrylic adhesive, ensuring reliable adhesion to a range of surfaces. Designed for use with 3M ScotchCode STD tape dispensers, the SDR tape simplifies the marking process, allowing for efficient and consistent labeling. Its durable construction and wide operating temperature range make it suitable for demanding environments. Available in a variety of colors and numbering options, the SDR tape provides a comprehensive labeling solution for electrical panels, terminal blocks, and other critical components.
3M SDR8 Wire Marking Tape Specifications:
- Material: Polyester film with acrylic pressure sensitive adhesive
- Application Temperature Range: 32°F to 120°F (0°C to 49°C)
- Operating Temperature Range: –40°F to 250°F (–40°C to 121°C)
- Storage Temperature: <br>80°F (26°C) (Relative Humidity) 25–50%
- Tape Roll Width: 0.215 inches (5,46 mm)
- Tape Roll Length: 96 inches (2,43 m)
- Number of Characters: 6 per inch (6 per 2,54 cm)
- Tape Thickness: 3 mils (0,08mm)
- Adhesion to Steel: 25 oz./inch width (273 Newtons/Meters) (ASTM D–1000)
- Adhesion to Backing: 10 oz./inch width (109 Newtons/Meters) (ASTM D–1000)
