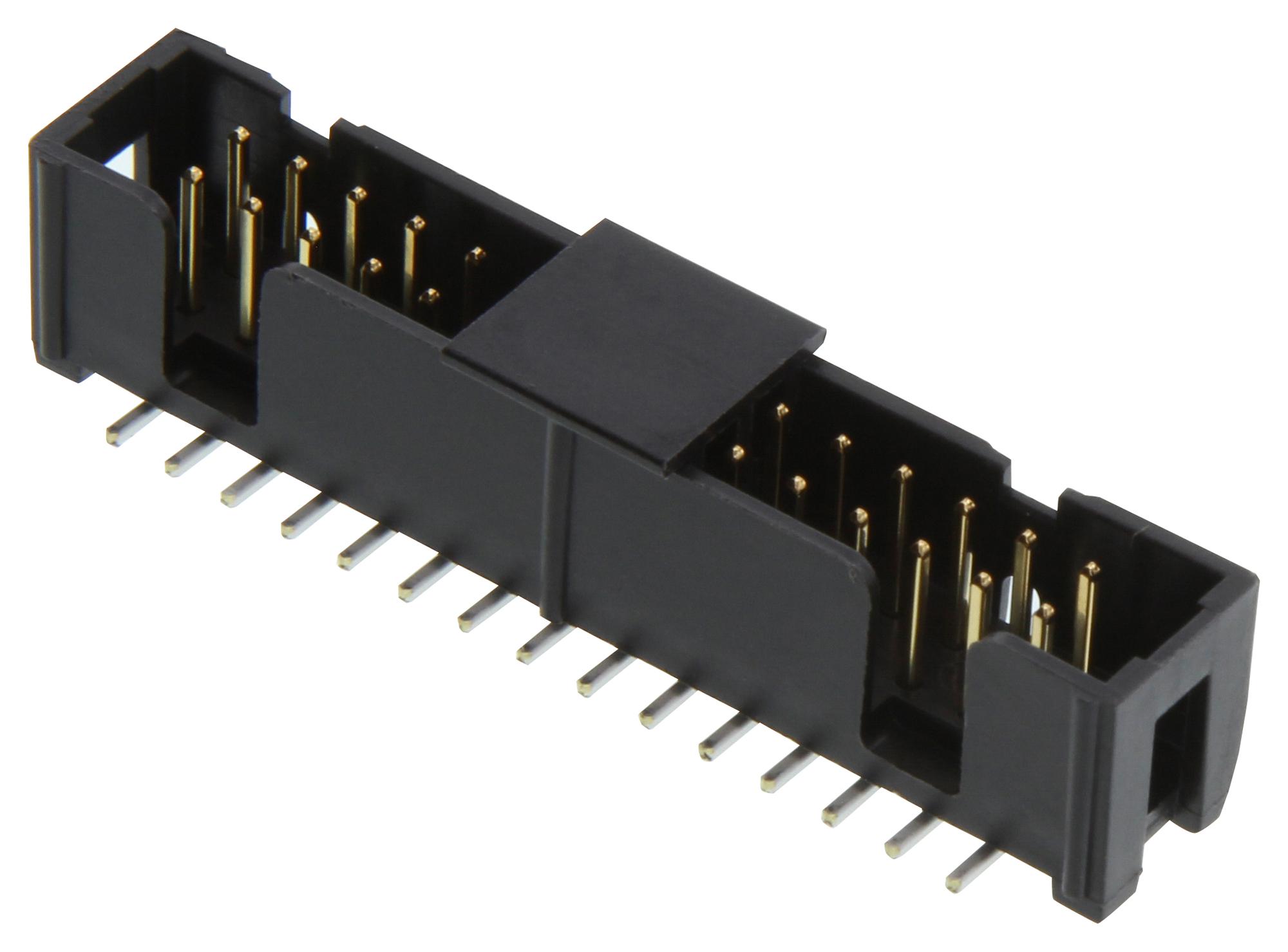

3M N25306V0CRBWF 4-Wall Header
The 3M™ 4-Wall Header is a space-saving, low-profile connector designed for SMT and through-hole applications. It features polarized slots to prevent mis-insertions, optional retainers for vibration resistance, and high temperature insulators suitable for lead-free soldering. Made of UL 94V-0 rated glass-filled polyester, it withstands temperatures from -55°C to +105°C, with a current rating of 2A and high insulation resistance. With exposed solder tails for easy cleaning and RoHS compliance, it’s ideal for reliable electronic connections in various environments.
3M N25306V0CRBWF 4-Wall Header Specifications:
- Physical Material: Glass Filled Polyester (PCT)
- Flammability: UL 94V-0
- Color: Black
- Contact Material: Copper Alloy
- Plating: Nickel overall, Gold and Matte Tin options
- Electrical Current Rating: 2A
- Insulation Resistance: >1 x 10^9 Ω at 500 Vde
- Withstanding Voltage: 1000 Vrms at sea level
- Temperature Rating: -55°C to +105°C
- Process Rating: Maximum 260°C, single pass
- Moisture Sensitivity Level: 1 (per J-STD-020C)
- Overall Dimensions: Length 100” x width 0.100”, various pin configurations
- Mounting: Suitable for SMT, through-hole, optional retainer clip
- RoHS Compliant: Yes
- Design Features: Center slot polarization, dual slot polarization, optional locking retainer, exposed solder tails
- Application: Suitable for electronic modules requiring stable, vibration-resistant connections
