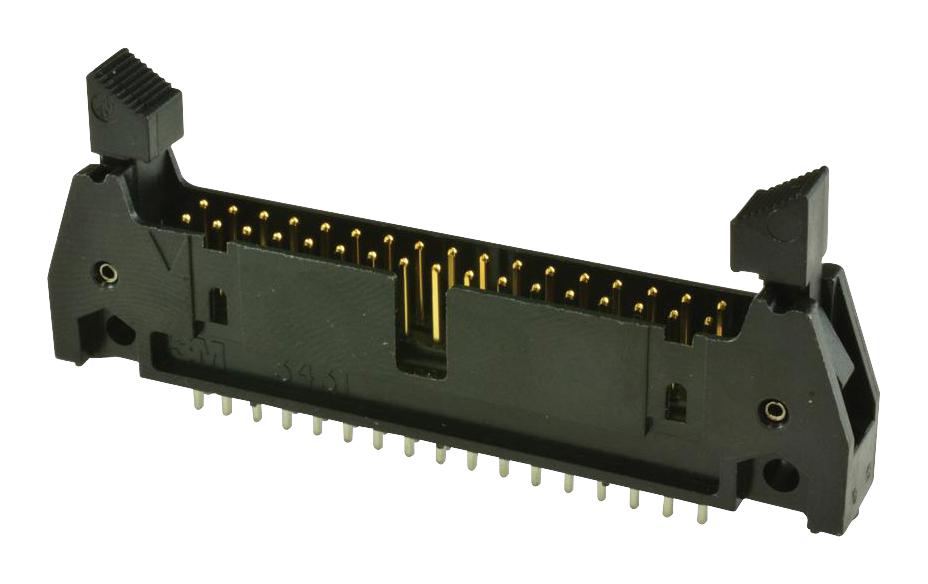

3M N34316202RB Four-Wall Header
The 3M Four-Wall Header is a high-quality electronic connector designed for reliable board-to-board connections in various electronic assemblies. Featuring a glass-filled polyester insulator with UL 94V-0 flammability rating, it offers options for high-temperature soldering and
3M N34316202RB Four-Wall Header Specifications:
- Insulator Material: Glass Filled Polyester (PBT) and High Temp PCT
- Flammability: UL 94V-0
- Color: Gray (PBT), Black (PCT)
- Contact Material: Copper Alloy
- Plating: 100 μ
- Wiping Area: 30 μ
- Solder Tails: Available with various tail options for different PCB thicknesses
- Current Rating: Up to 5.00A per contact, with derating
- Insulation Resistance: >1 x 10^9 Ω at 500 Vp.
- Withstanding Voltage: 1,000 V at sea level
- Temperature Rating: -55°C to +105°C, high-temp options up to 260°C
- Process Ratings: Solder wave up to 191°C, reflow up to 260°C
- Moisture Sensitivity Level: 1
- Mechanical Features: Mounting holes, optional polarizing posts, latch/ejector options
- Part Number Options: Customizable with various latch, tail, and plating options
Buy the 3M Series 3000 Four-Wall Header: N34316202RB
Get your 3M Four-Wall Header online today and enhance your electronic assemblies with a reliable, high-temperature connector. Designed with optional polarizing posts, latch/ejector configurations, and availability for lead-free soldering, this versatile connector ensures superior performance and durability. Ideal for board-to-board connections, it offers multiple tail options and high insulator ratings for demanding applications. Purchase now to secure quality, ease of installation, and long-lasting electronic reliability for your manufacturing or repair needs.
Order your 3M Series 3000 Four-Wall Header today and ensure dependable, high-temperature electronic connections for your next project.
Frequently Asked Questions
Where can I buy 3M N34316202RB?
You can click on the BUY or RFQ button to purchase N34316202RB from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part N34316202RB?
You can download the N34316202RB datasheet or visit the 3M website for support.
Who is the manufacturer of N34316202RB?
3M
