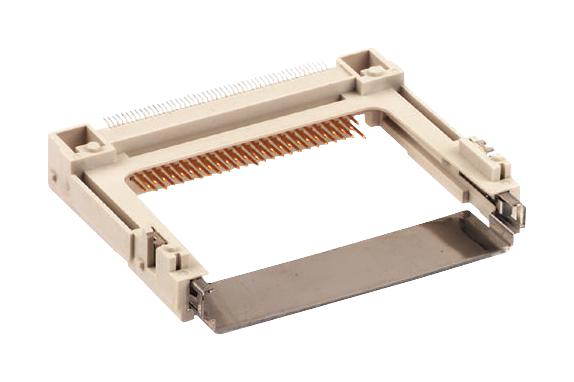

3M N7E50Q516RB40 CF Card Header
The 3M CF Card Header is a high-quality surface-mount connector designed for CompactFlash Type II cards, compatible with both Type I and II standards. It features polarization options for top or bottom board mounting, extended guide rails for precise insertion, and optional 2 mm standoff for easier board assembly. Constructed with high-temperature thermoplastic insulation, copper alloy contacts, and gold or tin plating, it offers reliable electrical performance with a 0.5 A current rating and resistance of 10^8 MQ at 500 V. Suitable for rugged environments, it withstands temperatures from -40°C to +85°C and meets regulatory standards for chemical and environmental compliance.
3M N7E50Q516RB40 CF Card Header Specifications:
- Insulation Material: High Temperature Thermoplastic
- Flammability: UL 94V-0
- Color: Beige
- Contact Material: Copper Alloy
- Plating: Underplating 2.03 μm Nickel, Wiping Area 0.38 μm or 0.76 μm Gold, Solder Tails Matte Tin or Gold Flash
- Current Rating: 0.5 A
- Insulation Resistance: 10^8 MQ at 500 V
- Withstanding Voltage: 500 Vac for 1 minute
- Temperature Rating: -40°C to +85°C
- Process Rating: Max 260°C
- Moisture Sensitivity Level: 1
Buy the 3M Series TESO CompactFlash Card Header: N7E50Q516RB40
Purchase the 3M Series TESO CompactFlash Card Header online today to guarantee secure, reliable, and high-quality connections for your CompactFlash Type II storage solutions. Designed with polarized options, extended guide rails, and surface-mount solder tails, it simplifies assembly and ensures precise insertion. Made from high-temperature thermoplastic insulation with copper alloy contacts and gold or tin plating, it supports up to 0.5 A and withstands temperatures from -40°C to +85°C. Available in various plating options, it is ideal for demanding industrial and electronic applications. Secure your order now for efficient project implementation.
Order your 3M Series TESO CompactFlash Card Header today and ensure reliable card connections with high performance and easy installation.
Frequently Asked Questions
Where can I buy 3M N7E50Q516RB40?
You can click on the BUY or RFQ button to purchase N7E50Q516RB40 from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part N7E50Q516RB40?
You can download the N7E50Q516RB40 datasheet or visit the 3M website for support.
Who is the manufacturer of N7E50Q516RB40?
3M
