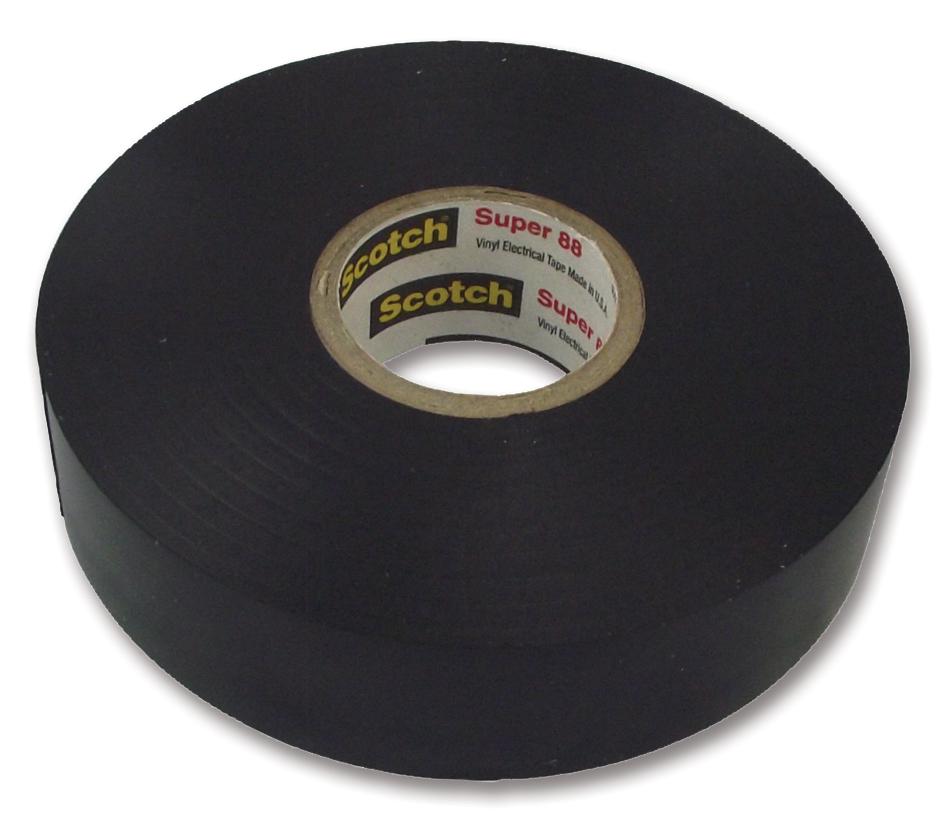

3M SUPER8838MM Vinyl Insulating Tape
Scotch® Vinyl Electrical Tape Super 88 is a high-quality, 8.5-mil thick, all-weather vinyl insulating tape designed for continuous use at temperatures up to 105°C (220°F). It offers excellent resistance to abrasion, moisture, alkalies, acids, corrosion, and weather conditions. Its conformable, elastic backing and strong adhesive provide moisture-tight electrical and mechanical protection with minimal bulk, making it suitable for indoor and outdoor electrical insulation, cable splicing, bus applications, and wire harnessing, ensuring durability and safety in demanding environments.
3M SUPER8838MM Vinyl Insulating Tape Specifications:
- Color: Black
- Thickness: 8.5 mils (0.22 mm)
- Adhesion to Steel at 22°C: 28 oz./in. (3.0 N/10 mm)
- Adhesion to Steel at -18°C: 60 oz./in. (6.5 N/10 mm)
- Breaking Strength: 20 lbs./in. (35 N/10 mm)
- Ultimate Elongation: 250% at 22°C, 100% at -18°C
- Dielectric Breakdown: 10,000 volts (standard), 90% of standard in high humidity
- Insulation Resistance: > 1×10^6 Megohms at high humidity
- Flammability: UL 510 Pass
- Application Temperature Range: 0°F to 100°F (-18°C to 38°C)
- Storage Shelf Life: 5 years in controlled humidity
- Material: PVC backing with rubber-based adhesive
- Approvals: UL Listed, CSA Certified, RoHS Compliant
Buy the 3M Series Super 88 Vinyl Insulating Tape: SUPER8838MM
Purchase 3M Super 88 Vinyl Insulating Tape online today to ensure excellent weather resistance, strong adhesion, and reliable electrical insulation for both indoor and outdoor applications. Perfect for wire and cable splices, bus insulations, and high-voltage repairs, this premium tape provides long-lasting protection in demanding environments. Its conformable design makes application easy, ensuring moisture-tight electrical and mechanical protection. Shop now for a dependable solution that meets UL standards and enhances your electrical safety projects with minimal effort and maximum durability.
Get 3M Super 88 Vinyl Insulating Tape today—built for outdoor durability and reliable electrical insulation.
Frequently Asked Questions
Where can I buy 3M SUPER8838MM?
You can click on the BUY or RFQ button to purchase SUPER8838MM from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part SUPER8838MM?
You can download the SUPER8838MM datasheet or visit the 3M website for support.
Who is the manufacturer of SUPER8838MM?
3M
