ABB - THOMAS & BETTS 54108NT Datasheet & Stock

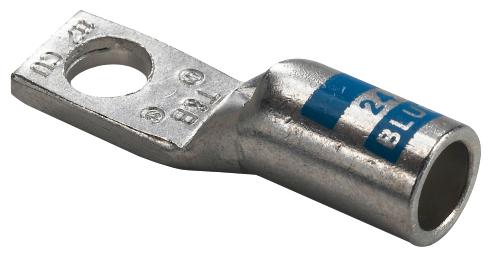

The 54108NT is a 1-hole Color-Keyed® standard barrel Narrow Tongue Lug, 1/4-inch stud with inspection hole, made of high conductivity copper with electro-tin plated finish. UL and CSA listed for copper code cables, inspection peep hole provided to ensure adequate cable insertion and color coded for correct matching of installing die and connector.




#1AWG Wire size

Code-37 green die

Terminates into very narrow spaces

35kV Maximum voltage





Applications


Power Management,

Industrial,

Motor Drive & Control





Warnings
Do not crimp on energized wires.
