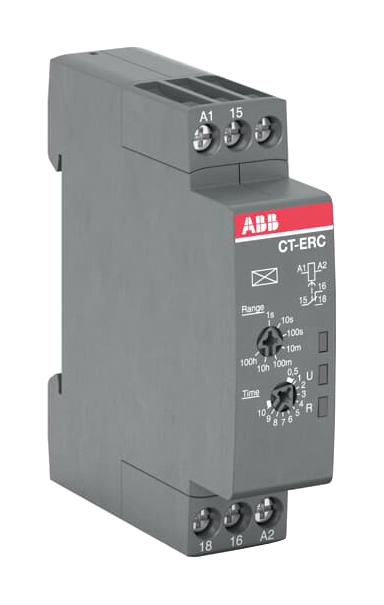

ABB 1SVR508100R0000 Time Relay ON-Delay 1c/o
The ABB CT-ERC.12 time relay is a versatile device used in industrial automation and control systems. It provides an ON-delay function, allowing for a delay before the output contact energizes. This is crucial in applications such as sequencing, motor starting, and process control. The relay is designed to operate on a wide voltage range (24-48VDC or 24-240VAC) and features a 1c/o contact configuration. It is mounted on standard DIN rails and is suitable for a variety of environmental conditions. Its robust design and reliable performance make it a valuable component in many industrial settings.
ABB 1SVR508100R0000 Time Relay ON-Delay 1c/o Specifications:
- Extended Product Type: CT-ERC.12
- Product ID: 1SVR508100R0000
- EAN: 4013614534317
- Catalog Description: CT-ERC.12 Time relay, ON-delay 1c/o, 24-48VDC/24-240VAC
- Long Description: CT-ERC.12 Time relay, ON-delay 1c/o, 24-48VDC/24-240VAC
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85364900
- Package Level 1 Width: 89 mm
- Package Level 1 Depth / Length: 20 mm
- Package Level 1 Height: 65 mm
- Package Level 1 Gross Weight: 0.065 kg
- Product Net Width: 17.5 mm
- Product Net Height: 70 mm
- Product Net Depth / Length: 63 mm
- Product Net Weight: 0.052 kg
- Timer Relay Type: ON-Delay
- Time Range: 0.05 s ... 100 h
- Rated Control Supply: 24 ... 240 V AC
- Voltage (Us): 24 ... 48 V DC
- Rated Frequency (f): 50/60 Hz DC
- Output: 1 c/o (SPDT) contact
- Terminal Type: Screw Terminals
- Rated Operational Current AC-12 (Ie): 4 A
- Rated Operational Current AC-15 (Ie): 3 A
- Rated Operational Current DC-12 (Ie): 4 A
- Rated Operational Current DC-13 (Ie): 2 A
- Minimum Switching Capacity: 100 mA
- Rated Insulation Voltage (Ui): 300 V
- Degree of Protection (Housing): IP50
- Degree of Protection (Terminals): IP20
- Overvoltage Category: III
- Pollution Degree: 3
- Short-Circuit Protective Devices: Output Circuit NC - F Type Fuses 6 A, Output Circuit NO - F Type Fuses 10 A
- Connecting Capacity (Flexible): 1x 0.5 ... 2.5 mm², 2x 0.5 ... 1.5 mm²
- Connecting Capacity (Rigid): 1x 0.5 ... 4 mm², 2x 0.5 ... 1.5 mm²
- Tightening Torque: 0.5 ... 0.8 N·m
- Wire Stripping Length: 7 mm
- Mounting Position: Any
- Mounting on DIN Rail: TH35-15, TH35-7.5
- Standards: CAN/CSA C22.2 No.14, EN 50581, IEC 61812-1, UL 508
- Ambient Air Temperature (Operation): -20 ... +60 °C
- Ambient Air Temperature (Storage): -40 ... +85 °C
- RoHS Status: Following EU Directive 2011/65/EU
- Maximum Operating Voltage UL/CSA: 300 V AC
- Contact Rating UL/CSA: B300
- Connecting Capacity UL/CSA (Flexible): 18-14 AWG, 2x 18-16 AWG
- Connecting Capacity UL/CSA (Rigid): 1x 20-12 AWG, 2x 20-16 AWG
- Tightening Torque UL/CSA: 4.43 ... 7.08 in·lb
- CCC Certificate: CCC_2019010303150608
- cULus Certificate: cULus_20031209-E140448
- Data Sheet, Technical Information: 2CDC111163C0201
- Declaration of Conformity - CE: 1SVD981068
- EAC Certificate: EAC_RU_C-DE.ME77.B.03531
- Instructions and Manuals: 1SVC500020M0001
- RoHS Information: 1SVD981068
- Object Classification Code: K
- ETIM 5: EC001439 - Timer relay
- ETIM 6: EC001439 - Timer relay
- ETIM 7: EC001439 - Timer relay
- eClass: 7.0 27371790
- UNSPSC: 39121519
- E-Number (Sweden): 4030218
