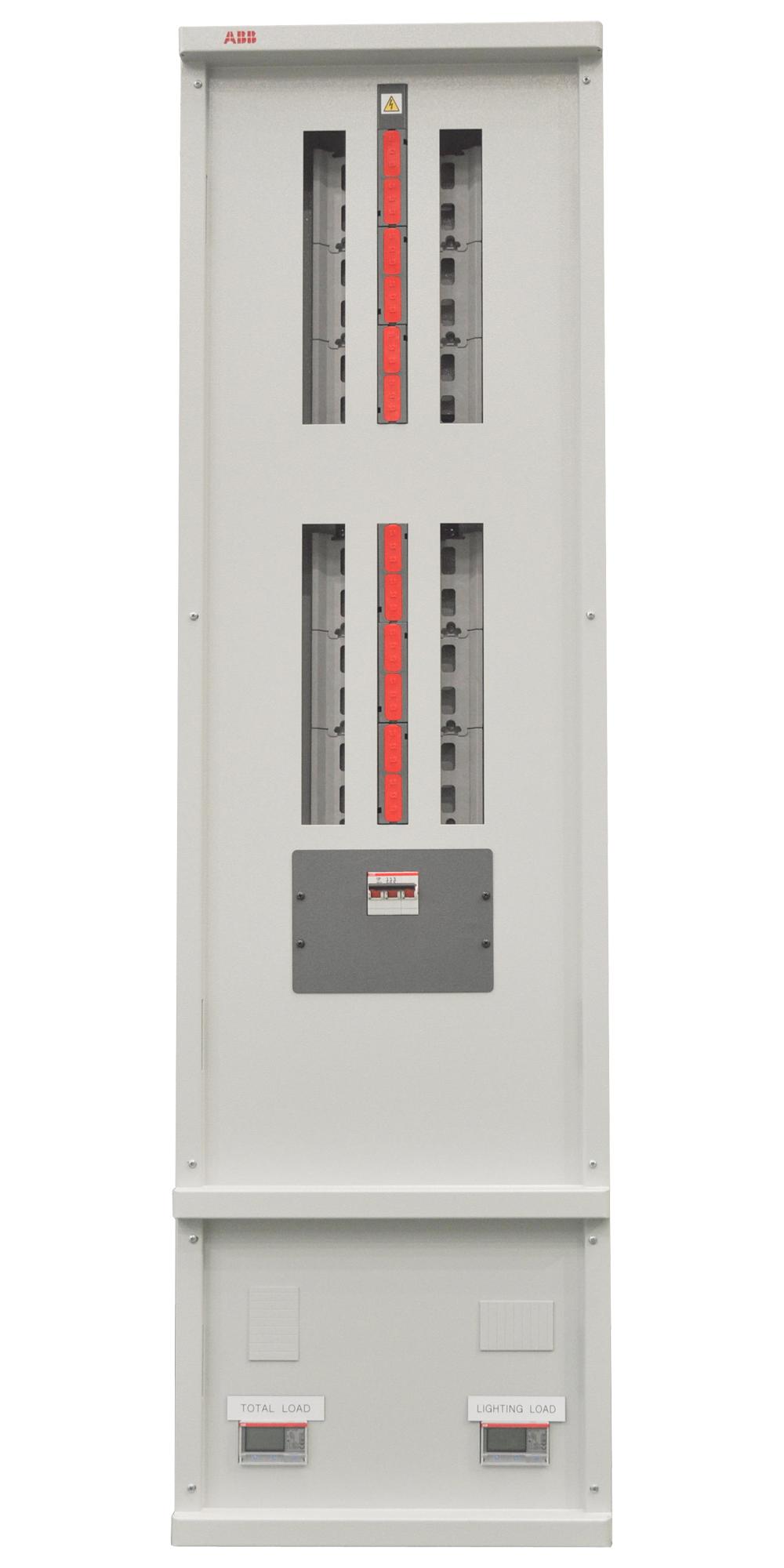

ABB EPPVSL842504P Distribution System
The Protecta Plus distribution system offers a customizable, modular solution for efficient electrical distribution in buildings. Featuring a robust epoxy-coated metal structure, it provides a wide range of configurations including wall-mounted, split-load, and metering options. The system ensures safety with isolated neutral and earth bars, IP30 protection, and easy wiring via large terminal access. It supports space-saving installation with reduced height modules, integrated surge and metering kits, and flexible auxiliary elements. Ideal for commercial and industrial applications, it combines reliability, safety, and scalability for easy upgrades over time.
ABB EPPVSL842504P Distribution System Specifications:
- Structure in epoxy coated metal sheets, 1 mm thick, textured finish
- Wall installation for indoor environments
- Protection degree: IP30, IP43 with door
- Maximum ambient temperature: +35°C
- Busbar rating: 250A
- Number of ways: 4, 8, 12, 16, 20, 24
- Dimensions vary with models, heights from 590 mm to 1360 mm, width 450 mm, depth from 125 mm to 1270 mm
- Rated operational voltage: 415 VAC
- Compliance with IEC BS EN 61439 1-2
- Mechanical resistance: IK07
- Material: Cold rolled sheet steel, RAL7035 textured powder coating
- Protection degree in enclosure: IP30/IP43
- Maximum load: 250A
- Operating temperature: -25°C to +35°C
- Cable entry: Pre-cut holes for wiring harnesses, top and bottom openings
- Supports auxiliary, metering, surge protection, and control components
Buy the ABB Series Protecta Plus: Distribution Board 250A - EPPVSL842504P
Purchase the ABB Protecta Plus distribution system online today for a safe, scalable, and easy-to-install electrical distribution solution. Its modular design allows quick upgrades and adjustments, suitable for commercial and industrial environments. The system features robust epoxy-coated metal enclosures, space-saving configurations, and integrated surge, metering, and auxiliary components. Designed for indoor applications, it ensures safety with IP30 protection, isolated neutral and earth bars, and easy wiring access. Enhance your electrical reliability and efficiency—order now for fast delivery and professional support.
Order your ABB Series Protecta Plus distribution board 250A today and give your electrical system the dependable, scalable safety and efficiency it deserves.
Frequently Asked Questions
Where can I buy ABB EPPVSL842504P?
You can click on the BUY or RFQ button to purchase EPPVSL842504P from an authorized ABB distributor.
How do I troubleshoot issues or seek technical support for part EPPVSL842504P?
You can download the EPPVSL842504P datasheet or visit the ABB website for support.
Who is the manufacturer of EPPVSL842504P?
ABB
