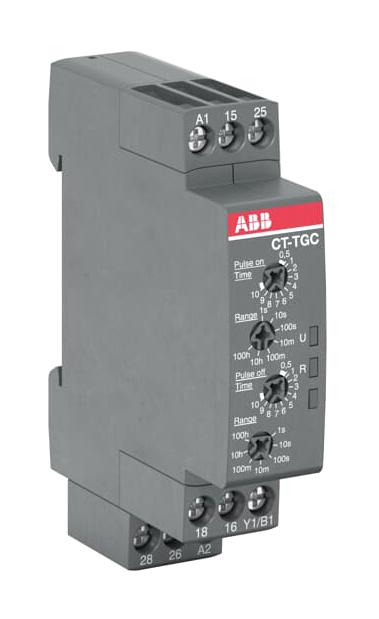

ABB 1SVR508160R0100 Time Relay Pulse Generator
The ABB CT-TGC.22 is a versatile time relay and pulse generator suitable for a wide range of industrial automation and control applications. It provides precise timing functions with a time range of 0.05 seconds to 100 hours, allowing for accurate control of processes and sequences. The relay's 2c/o (SPDT) contacts are rated for operational currents up to 4A at 230V AC and 2A at 24V DC, making it suitable for various switching applications. It is DIN rail mountable and conforms to several international standards including IEC 61812-1 and UL 508. Its robust design and wide operating temperature range (-20°C to +60°C) ensure reliable performance in demanding environments.
ABB 1SVR508160R0100 Time Relay Pulse Generator Specifications:
- Extended Product Type: CT-TGC.22
- Product ID: 1SVR508160R0100
- EAN: 4013614534256
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85364900
- Package Level 1 Width: 89 mm
- Package Level 1 Depth / Length: 20 mm
- Package Level 1 Height: 65 mm
- Package Level 1 Gross Weight: 0.079 kg
- Product Net Width: 17.5 mm
- Product Net Height: 80 mm
- Product Net Depth / Length: 63 mm
- Product Net Weight: 0.066 kg
- Timer Relay Type: Pulse Generator
- Time Range: 0.05 s ... 100 h
- Rated Control Supply: 24 ... 240 V AC
- Voltage (Us): 24 ... 48 V DC
- Rated Frequency (f): 50/60 Hz DC
- Output: 2 c/o (SPDT) contacts
- Terminal Type: Screw Terminals
- Rated Operational Current AC-12 (Ie): 4 A
- Rated Operational Current AC-15 (Ie): 3 A
- Rated Operational Current DC-12 (Ie): 4 A
- Rated Operational Current DC-13 (Ie): 2 A
- Minimum Switching Capacity: 100 mA
- Rated Insulation Voltage (Ui): 300 V
- Degree of Protection (Housing): IP50
- Degree of Protection (Terminals): IP20
- Overvoltage Category: III
- Pollution Degree: 3
- Short-Circuit Protective Devices: Output Circuit NC - F Type Fuses 6 A, Output Circuit NO - F Type Fuses 10 A
- Connecting Capacity (Flexible): 1x 0.5 ... 2.5 mm², 2x 0.5 ... 1.5 mm²
- Connecting Capacity (Rigid): 1x 0.5 ... 4 mm², 2x 0.5 ... 1.5 mm²
- Tightening Torque: 0.5 ... 0.8 N·m
- Wire Stripping Length: 7 mm
- Mounting Position: Any
- Mounting on DIN Rail: TH35-15, TH35-7.5
- Standards: CAN/CSA C22.2 No.14, EN 50581, IEC 61812-1, UL 508
- Ambient Air Temperature (Operation): -20 ... +60 °C
- Ambient Air Temperature (Storage): -40 ... +85 °C
- RoHS Status: Following EU Directive 2011/65/EU
- Maximum Operating Voltage UL/CSA: 300 V AC
- Contact Rating UL/CSA: B300
- Connecting Capacity UL/CSA (Flexible): 1x 18-14 AWG, 2x 18-16 AWG
- Connecting Capacity UL/CSA (Rigid): 1x 20-12 AWG, 2x 20-16 AWG
- Tightening Torque UL/CSA: 4.43 ... 7.08 in·lb
- CCC Certificate: CCC_2019010303150608
- cULus Certificate: cULus_20031209-E140448
- Data Sheet Technical Information: 2CDC111163C0201
- Declaration of Conformity - CE: 1SVD981068
- EAC Certificate: EAC_RU_C-DE.ME77.B.03531
- Instructions and Manuals: 1SVC500020M0001
- RoHS Information: 1SVD981068
- Object Classification Code: K
- ETIM 5: EC001439 - Timer relay
- ETIM 6: EC001439 - Timer relay
- ETIM 7: EC001439 - Timer relay
- EClass: 7.0 27371790
- UNSPSC: 39121519
- E-Number (Sweden): 4030224
