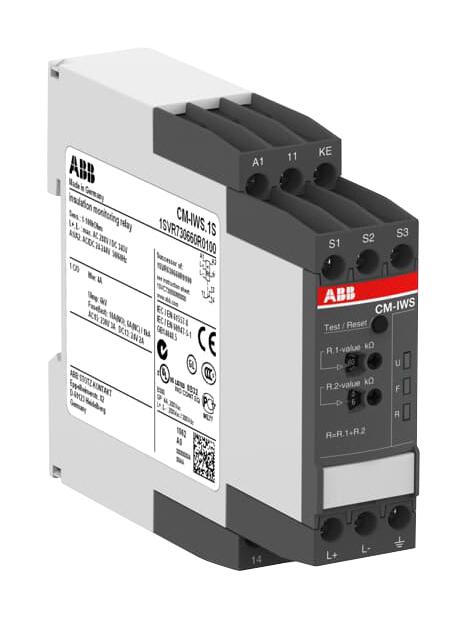

ABB 1SVR730660R0100 Insulation Monitoring Relay
The ABB CM-IWS.1S insulation monitoring relay provides reliable protection for unearthed AC and DC systems, as well as mixed AC/DC systems. This device monitors insulation resistance, detecting potential faults before they lead to system failures. It is suitable for applications requiring continuous monitoring of insulation integrity in industrial environments, ensuring safety and preventing downtime. The relay offers a wide operating voltage range and a compact design for easy integration into control panels.
ABB 1SVR730660R0100 Insulation Monitoring Relay Specifications:
- Extended Product Type: CM-IWS.1S
- Product ID: 1SVR730660R0100
- EAN: 4016779852609
- Catalog Description: CM-IWS.1S Insulation monitoring relay 1c/o, 1-100kOhm, 24-240VAC/DC
- Long Description: CM-IWS.1S Insulation monitoring relay 1c/o, 1-100kOhm, 24-240VAC/DC Replacement for 1SVR630660R0100
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85364900
- Package Level 1 Width: 97 mm
- Package Level 1 Height: 109 mm
- Package Level 1 Depth / Length: 30 mm
- Package Level 1 Gross Weight: 0.173 kg
- Product Net Width: 22.5 mm
- Product Net Depth / Length: 103.7 mm
- Product Net Height: 85.6 mm
- Product Net Weight: 0.148 kg
- Function: Unearthed AC systems, Unearthed DC systems, Unearthed mixed AC / DC systems, Up to 250 V AC, Up to 300 V DC
- Measuring Range: 1 ... 100 kΩ
- Rated Control Supply Voltage (Us): 24 ... 240 V AC/DC
- Output: 1 c/o (SPDT) contact
- System Leakage Capacitance (C_E_): 10 µF
- Terminal Type: Screw Terminals
- Object Classification Code: B
- ETIM 4: EC001444 - Insulation and earth fault monitoring relay
- ETIM 5: EC001444 - Insulation and earth fault monitoring relay
- ETIM 6: EC001444 - Insulation and earth fault monitoring relay
- ETIM 7: EC001444 - Insulation and earth fault monitoring relay
- eClass: 7.0 27371807
- E-Number (Sweden): 3860655
- RoHS Status: Following EU Directive 2011/65/EU
Buy the 1SVR730660R0100 ABB Insulation Monitoring Relay | myMectronic
Purchase the genuine ABB 1SVR730660R0100 CM-IWS insulation monitoring relay securely and conveniently online.
Buy Now
