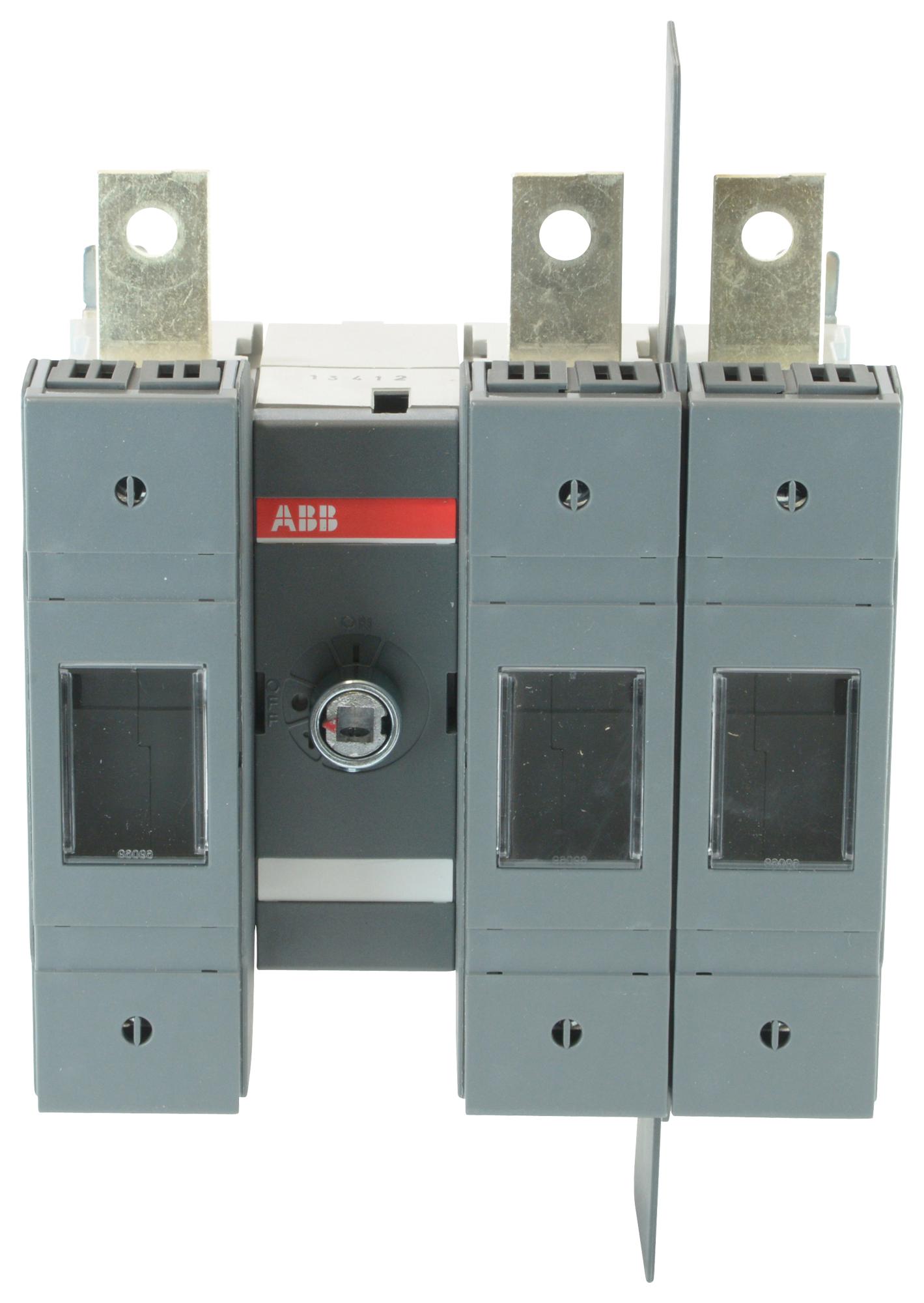

ABB OS100GJ12 Fuses and Switch Fuses
The OS100GJ12 switch fuse is a high-capacity, front-operated, 3-pole Class J fuse designed for reliable electrical protection. With a rated operational current of 100 A at 500 V and 690 V, it features a compact design measuring 147 mm in width, 172 mm in height, and 105 mm in depth. The fuse system supports top-in bottom-out installation, with terminal lug width of 20 mm and a power loss of 12 W. Certified under UL and IEC standards, it is suitable for demanding low voltage applications in industrial systems.
ABB OS100GJ12 Fuses and Switch Fuses Specifications:
- Net Width: 147 mm
- Net Height: 172 mm
- Net Depth: 105 mm
- Weight: 1.815 kg
- Rated Operational Current AC-21A (500 V): 100 A
- Rated Operational Current AC-21A (690 V): 100 A
- Rated Power AC-23A (220-240 V): 45 kW
- Rated Power AC-23A (400 V): 75 kW
- Rated Power AC-23A (415 V): 75 kW
- Rated Power AC-23A (500 V): 90 kW
- Rated Power AC-23A (690 V): 132 kW
- Conventional Free-air Thermal Current: 160 A
- Rated Impulse Withstand Voltage: 8 kV
- Rated Insulation Voltage: 1000 V
- Rated Operational Voltage: 500 V at 1s 5 kA rms
- Rated Short-time Withstand Current: 80 kA (690 V)
- Power Loss: 12 W
- Handle Type: Front Operated
- Poles: 3
- Terminal Type: Lug terminals, width 20 mm
- Mounting Type: Base mounting
- Standards: UL98, IEC 60947-3
- Certifications: UL, CSA, EAC, DNV GL, CCC
Buy the Buy Industrial Fuse Switch Part Number OS100GJ12 Online
Secure your electrical systems with the high-capacity OS100GJ12 fuse switch, designed for industrial environments requiring reliable overcurrent protection. This 3-pole Class J fuse features 100 A current rating, UL and IEC standards compliance, and a compact, easy-to-install design. With a power capacity up to 132 kW at 690 V and a power loss of just 12 W, it provides efficient protection while maintaining safety and durability. Purchase online today for seamless integration into your electrical installations and projects.
Order your industrial fuse switch OS100GJ12 today and ensure reliable electrical protection with our robust and certified fuse system.
Frequently Asked Questions
Where can I buy ABB OS100GJ12?
You can click on the BUY or RFQ button to purchase OS100GJ12 from an authorized ABB distributor.
How do I troubleshoot issues or seek technical support for part OS100GJ12?
You can download the OS100GJ12 datasheet or visit the ABB website for support.
Who is the manufacturer of OS100GJ12?
ABB
