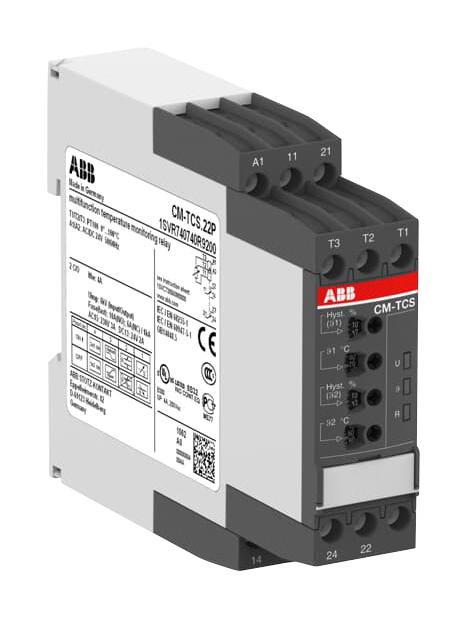

ABB 1SVR740740R9200 Temperature Monitoring Relay
The ABB CM-TCS.22P temperature monitoring relay is a versatile device used to monitor temperatures in industrial applications. It offers both over and undertemperature monitoring capabilities, utilizing a PT100 sensor for accurate readings. The relay operates on 24VAC/DC voltage and features configurable output contacts. It is designed for reliable performance in various environments, including those with fluctuating temperatures and potential electrical disturbances. Its DIN rail mounting capability and wide operating temperature range (-40°C to +60°C) make it suitable for diverse industrial settings, ensuring precise temperature control and process safety.
ABB 1SVR740740R9200 Temperature Monitoring Relay Specifications:
- Extended Product Type: CM-TCS.22P
- Product ID: 1SVR740740R9200
- EAN: 4016779852814
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85364900
- Package Level 1 Width: 97 mm
- Package Level 1 Height: 109 mm
- Package Level 1 Depth / Length: 30 mm
- Package Level 1 Gross Weight: 0.152 kg
- Product Net Width: 22.5 mm
- Product Net Depth / Length: 103.7 mm
- Product Net Height: 85.6 mm
- Product Net Weight: 0.127 kg
- Function: Overtemperature monitoring, Undertemperature monitoring, Over- and undertemperature monitoring, 1 sensor circuit, Short-circuit detection
- Measuring Range: 0 ... +100 °C
- Sensor Type: PT100
- Rated Control Supply Voltage (Us): 24 V AC/DC
- Rated Frequency (f) Supply Circuit: 50/60 Hz DC
- Output: 2 x 1 c/o or 1 x 2 c/o contacts, configurable
- Terminal Type: Screwless Terminals
- Rated Operational Current AC-12 (Ie): 4 A (230 V)
- Rated Operational Current AC-15 (Ie): 3 A (230 V)
- Rated Operational Current DC-12 (Ie): 4 A (24 V)
- Rated Operational Current DC-13 (Ie): 2 A (24 V)
- Minimum Switching Capacity: 10 mA (24 V)
- Rated Impulse Withstand Voltage (Uimp): 4 kV (Measuring/Output Circuit), 4 kV (Output Circuit 1/2), 4 kV (Supply Circuit/Measuring Circuit), 4 kV (Supply Circuit/Output Circuit)
- Rated Insulation Voltage (Ui): 300 V (Measuring/Output Circuit), 300 V (Output Circuit 1/2), 300 V (Supply Circuit/Measuring Circuit), 300 V (Supply Circuit/Output Circuit)
- Degree of Protection: IP50 (Housing), IP20 (Terminals)
- Overvoltage Category: III
- Pollution Degree: 3
- Short-Circuit Protective Devices: Output Circuit NC - F Type Fuses 6 A, Output Circuit NO - F Type Fuses 10 A
- Electrical Durability: AC-12 100000 cycle
- Mechanical Durability: 30000000 cycle
- Connecting Capacity: Flexible with Ferrule 2x 0.5 ... 1.5 mm², Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm², Flexible 2x 0.5 ... 1.5 mm², Rigid 2x 0.5 ... 1.5 mm²
- Wire Stripping Length: 8 mm
- Mounting Position: Any
- Mounting on DIN Rail: TH35-15 (35 x 15 mm), TH35-7.5 (35 x 7.5 mm)
- Standards: CAN/CSA C22.2 No.14, EN 50581, IEC/EN 60255-27, IEC/EN 61000-6-2, IEC/EN 61000-6-3, UL 508
- Ambient Air Temperature (Operation): -40 ... +60 °C
- Ambient Air Temperature (Storage): -40 ... +85 °C
- Maximum Operating Voltage UL/CSA: 300 V AC
- Contact Rating UL/CSA: B300
- Connecting Capacity UL/CSA: Flexible 2x 18-16 AWG, Rigid 2x 20-16 AWG
- CCC Certificate: CCC_2018010303056014
- cULus Certificate: cULus508_20170922-E140448
- Data Sheet, Technical Information: 2CDC112199D0201
- Declaration of Conformity - CE: 1SVD981015-0001
- EAC Certificate: EAC_RU_C-DE.ME77.B.03424
- Environmental Information: 1SAA981015-2402
- GL Certificate: GL_60466-13HH
- Instructions and Manuals: 1SVC730560M0000
- RoHS Information: 1SVD981015-0001
- Object Classification Code: B
- ETIM 4: EC001446 - Temperature monitoring relay
- ETIM 5: EC001446 - Temperature monitoring relay
- ETIM 6: EC001446 - Temperature monitoring relay
- ETIM 7: EC001446 - Temperature monitoring relay
- eClass: 7.0 27371810
- E-Number (Sweden): 3860673
