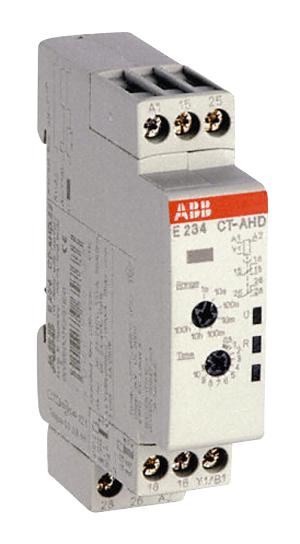

ABB CTAHD12 Time Relay
The CT-AHD.12 is a versatile electronic time relay offering an OFF-delay function with seven adjustable time ranges from 0.05 seconds to 100 hours. It operates on a control voltage of 24-48 V DC or 24-240 V AC, providing a reliable SPDT output rated at 6 A and 250 V. Designed for low voltage control systems, it features screw terminals, robust housing rated IP50, and complies with international standards such as UL 508 and IEC 61812-1. Its compact size and DIN rail mounting make it ideal for automation and control applications requiring precise timing intervals.
ABB CTAHD12 Time Relay Specifications:
- Time Range: 0.05 s - 100 h
- Control Voltage: 24-240 VAC / 24-48 V DC
- Output: SPDT contact rated at 6 A / 250 V
- Terminal Type: Screw terminals
- Rated Operational Current: AC-12 6A, DC-12 6A
- Housing Protection: IP50, Terminals IP20
- Mounting: DIN rail (IEC 60715) compatible with TH35-15 and TH35-7.5
- Connection Capacity: Flexible 1x 18-14 AWG, 2x 18-16 AWG; Rigid 1x 20-12 AWG
- Maximum Operating Voltage: 300 V AC
- Standards: UL 508, IEC 61812-1
- Operational Temperature: -20°C to +60°C
- Certifications include UL, CE, EAC, GOST, RoHS, CB
Buy the Eaton Series CT-AHD.12 Time Relay: CTAHD12
Purchase the Eaton Series CT-AHD.12 time relay online now and enjoy precise OFF-delay operation from 0.05 seconds to 100 hours. This compact, DIN rail-mounted relay features screw terminals, a SPDT contact rated at 6 A, and operates on 24-240V AC/DC. Its robust construction and compliance with international standards like UL 508 and IEC 61812-1 make it ideal for automation and control applications. Order today for dependable, high-quality timing solutions that enhance your control system performance.
Order your Eaton Series CT-AHD.12 time relay today and ensure reliable OFF-delay timing for your automation projects.
Frequently Asked Questions
Where can I buy ABB CTAHD12?
You can click on the BUY or RFQ button to purchase CTAHD12 from an authorized ABB distributor.
How do I troubleshoot issues or seek technical support for part CTAHD12?
You can download the CTAHD12 datasheet or visit the ABB website for support.
Who is the manufacturer of CTAHD12?
ABB
