ABB 2CMA193121R1000 Industrial Socket Outlet

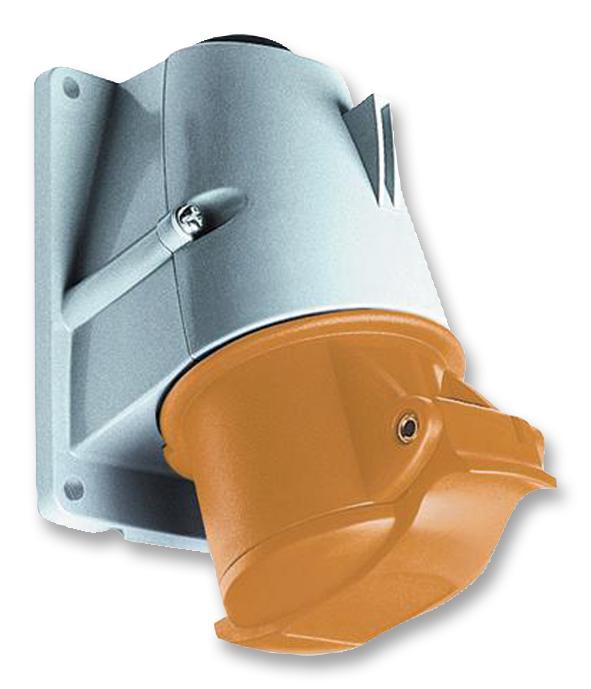

The ABB Surface socket-outlet model 232RS4 is designed for industrial environments, offering reliable power connection with IP44 splashproof protection. Rated at 32A and suitable for 50-60 Hz frequency, it features a 2P+E configuration with earthing sleeve for safety. Made from durable thermoplastic, it provides easy cable entry via flexible membrane and M25 threaded insert. Its dimensions are 85 mm width, 163 mm height, and 118 mm length, ensuring robust performance and compliance with IEC 60309 standards for industrial sockets. Ideal for surface mounting in demanding applications.
ABB 2CMA193121R1000 Industrial Socket Outlet Specifications:
- Rated Current: 32A
- Rated Voltage: 100-130 V
- Frequency: 50-60 Hz
- Protection Type: IP44 splashproof
- Number of Poles: 3
- Material: Thermoplastic
- Dimensions: Width 85 mm, Height 163 mm, Length 118 mm
- Cable Entry: Rear knock-out, flexible membrane, M25 threaded insert
- Standards: IEC 60309-1, IEC 60309-2
- Color: Yellow
- Object Classification Code: 2CMT005069
- Weight: 0.300 kg
Buy the Buy ABB Industrial Socket Outlet Part Number 2CMA193121R1000 Online
Purchase the ABB 232RS4 surface socket-outlet online today for reliable power connectivity in industrial settings. Featuring IP44 splashproof protection, rated at 32A and compliant with IEC standards, it offers durable thermoplastic construction and convenient rear knock-out cable entry with M25 threaded insert. Its compact dimensions of 85 mm width, 163 mm height, and 118 mm length ensure a robust fit for demanding environments. Trust ABB’s quality to ensure safety, performance, and long-lasting operation in your industrial applications.
Get ABB 232RS4 industrial socket outlet today—designed for durable power connection with splashproof protection and easy cable entry.
Frequently Asked Questions
Where can I buy ABB 2CMA193121R1000?
You can click on the BUY or RFQ button to purchase 2CMA193121R1000 from an authorized ABB distributor.
How do I troubleshoot issues or seek technical support for part 2CMA193121R1000?
You can download the 2CMA193121R1000 datasheet or visit the ABB website for support.
Who is the manufacturer of 2CMA193121R1000?
ABB
