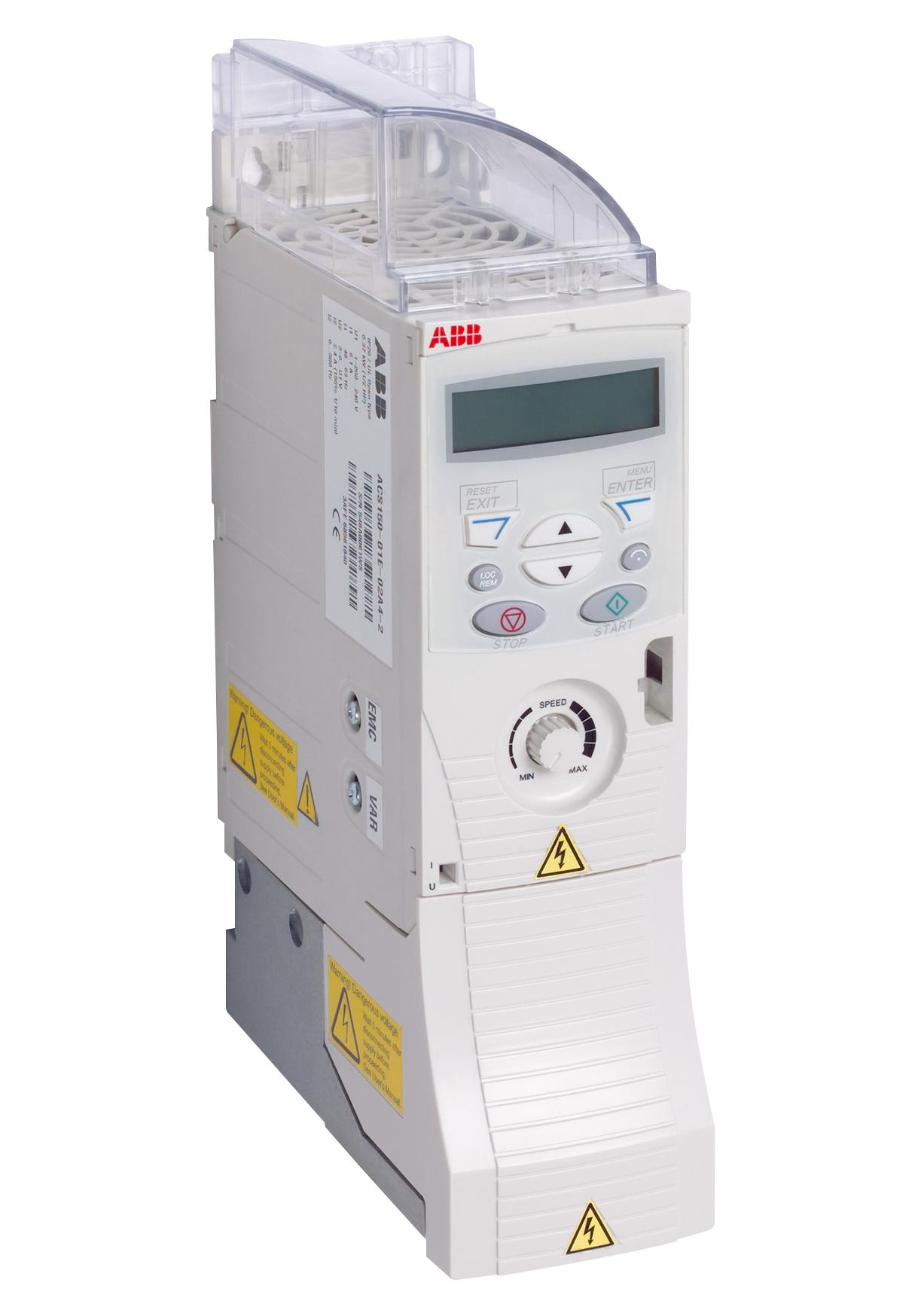

ABB ACS15003E07A34 Variable Frequency Drive
The ACS150 is a compact and versatile micro drive suitable for a variety of applications including mixers, conveyors, fans, and pumps. It features built-in PID control, a brake chopper, integrated EMC filters, and flexible mounting options for space-saving installation. Designed to meet worldwide standards and available in different voltage and power configurations, it offers reliable performance with advanced control macros, energy-efficient operation, and easy configuration via FlashDrop tool. Ideal for OEMs and machinery builders, it ensures efficient motor control and minimal downtime across industries.
ABB ACS15003E07A34 Variable Frequency Drive Specifications:
- Power Range: 0.37 to 4 kW (0.5 to 5 hp)
- Voltage: 1-phase 200-240 V, 3-phase 200-240 V, 3-phase 380-480 V
- Frequency: 48 to 63 Hz
- Enclosure: NEMA 1 or DIN rail mounting options
- Cooling: Internal fans, max ambient temperature 40°C with derating
- Input/Output: 5 digital inputs, 1 relay output, analog input 0-10 V or 4-20 mA
- Control Method: Scalar U/f, PID, with integrated brake chopper
- Switching Frequency: Default 4 kHz, adjustable 4-16 kHz
- Protection Class: IP20/NEMA 1, optional NEMA 1 enclosure for protection
- Standards: UL, cUL, CE, RoHS, IEC 61800-3 category C3 EMC compliance
- Fuses & Filters: Compatible with external input chokes, output chokes, EMC filters, and brake resistors
- Operating Temperature: -10°C to 40°C (14°F to 104°F), derating above 50°C
- Altitude: Up to 2000 m with 1% current reduction per 100 m
- Certifications: ISO 9001, ISO 14001, CE, UL, cUL, RoHS
Buy the ABB Series ACS150 Variable Frequency Drive: ACS15003E07A34
Discover the ABB Series ACS150 Variable Frequency Drive, a compact and reliable motor control solution suitable for conveyors, mixers, fans, and pumps. It features built-in PID control, space-saving design with flexible mounting options, integrated brake chopper, and advanced macro configurations for easy setup. Designed to meet worldwide standards, this drive helps optimize energy consumption and improve process stability. Purchase online today to enhance your automation system with dependable, easy-to-install, and efficient drive technology tailored for industrial and commercial use.
Order your ABB Series ACS150 variable frequency drive today and enjoy reliable, energy-efficient motor control optimized for industrial applications.
Frequently Asked Questions
Where can I buy ABB ACS15003E07A34?
You can click on the BUY or RFQ button to purchase ACS15003E07A34 from an authorized ABB distributor.
How do I troubleshoot issues or seek technical support for part ACS15003E07A34?
You can download the ACS15003E07A34 datasheet or visit the ABB website for support.
Who is the manufacturer of ACS15003E07A34?
ABB
