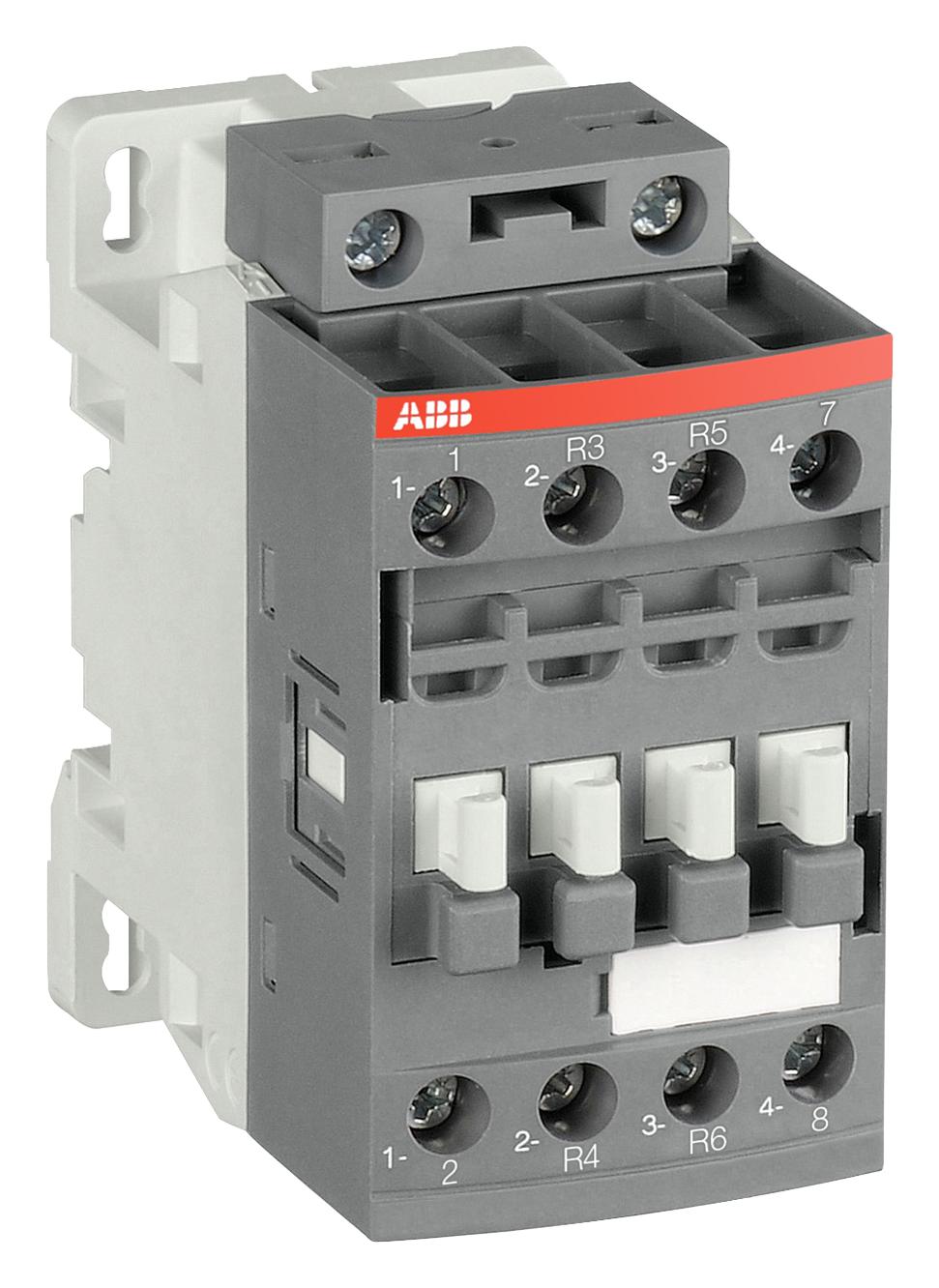

ABB AF09301011 Contactor
This three-pole IEC-rated contactor is engineered for controlling electrical circuits with high reliability. It features a versatile 9-amp coil voltage range from 24 to 60 volts AC or DC, suitable for industrial machinery and automation systems. The compact design measures 77mm in depth, 86mm in height, and 45mm in width, with a weight of 0.270kg. It supports up to 690 V AC and 220 V DC, with auxiliary normally open contact and robust construction adhering to IEC standards. Perfect for controlling three-phase motors and inductive loads with surge protection built-in.
ABB AF09301011 Contactor Specifications:
- Dimensions: Depth 77mm, Height 86mm, Width 45mm
- Weight: 0.270kg
- Control Voltage Range: 24 to 60 V AC/DC
- Rated Operational Voltage: 690V AC, 220V DC
- Auxiliary Contact: 1 NO
- Number of Main Contacts: 3 poles
- Standards: IEC 60947-4-1, IEC 60947-5-1, UL 508, CSA C22.2
- Rated Operational Current: 16A at 690V AC (IEC), 9A at 220V AC
- Maximum Breaking Capacity: 80A at 690V AC
- Ambient Temperature Range: -60°C to +80°C (storage), -25°C to +70°C (operation with thermal overload)
- Protection Level: IP20 according to IEC 60529
- Climatic Withstand: Category B, up to 3000m altitude
- Connections: Screw terminals, wire capacity 0.75–6 mm²
- Certifications: CE, UL, CSA, RoHS compliant
- Frequency Support: 50/60 Hz
Buy the ABB Series AF09 Contactor: AF09301011
Purchase the ABB AF09301011 contactor online now for dependable control of three-phase motors and inductive loads. This IEC-rated device offers versatile 24 to 60 volts AC/DC control voltage, robust construction, and compliance with international standards. Its compact design supports high voltage ratings up to 690V AC and 220V DC with built-in surge protection, making it ideal for automation and industrial applications. Enjoy quick, secure ordering and fast delivery to streamline your electrical control needs with durable, reliable components designed for long-term use.
Get ABB AF09301011 contactor today—built for precision, durability, and reliable motor control in industrial automation.
