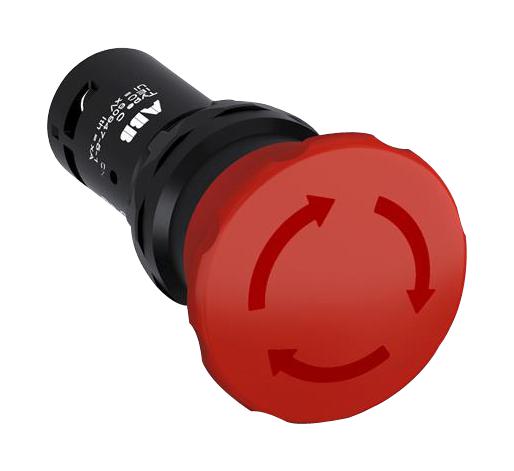

ABB CE4T10R01 Compact Emergency Stop
The ABB CE4T-10R-01 is a compact emergency stop button designed for use in industrial machinery and equipment. This button features a twist release mechanism for quick and easy activation, a 40mm mushroom head for clear visibility, and a red color for immediate recognition. It includes a 1NC contact block, providing a fail-safe function in emergency situations. The button is built to withstand harsh environments, with a degree of protection of IP69K on the front and IP20 on the terminals. Its robust construction and reliable performance make it suitable for a wide range of applications where immediate shutdown is critical.
ABB CE4T10R01 Compact Emergency Stop Specifications:
- Extended Product Type: CE4T-10R-01
- Product ID: 1SFA619550R1041
- EAN: 7320500260715
- Catalog Description: EMERGENCY STOP CE4T-10R-01
- Long Description: Compact Emergency Stop - Twist release - Mushroom 40mm - Red - Non-illuminated - Black plastic - 1NC
- E-Number (Norway): 4372707
- E-Number (Sweden): 3711514
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85369001
- Product Net Width: 0.04 m
- Product Net Height: 0.04 m
- Product Net Depth / Length: 0.073 m
- Product Net Weight: 0.036 kg
- Package Level 1 Width: 0.1 m
- Package Level 1 Height: 0.04 m
- Package Level 1 Depth / Length: 0.1 m
- Package Level 1 Gross Weight: 0.036 kg
- Ambient Air Temperature Operation: -25 ... +70 °C
- Ambient Air Temperature Storage: -30 ... +85 °C
- Actuator Type: Mushroom 40 mm
- Bezel Material: n/a
- Block: 1NC
- Color: Red
- Degree of Protection Front: IP69K
- Degree of Protection Terminals: IP20
- Function: Twist release
- Illumination: Non-illuminated
- Mechanical Durability: 0.5 million
- Number of Auxiliary Contacts NC: 1
- Product Main Type: CE4T
- Product Name: Emergency Stop
- Product Range: Compact
- Product Type: CE
- Rated Frequency (f) Supply Circuit: 60 50 Hz
- Rated Operational Current AC-15 (Ie) 220/240V: 1 A
- Rated Operational Current AC-15 (Ie) 24/127V: 1.5 A
- Rated Operational Current DC-13 (Ie) 125V: 0.2 A
- Rated Operational Current DC-13 (Ie) 24V: 0.3 A
- RoHS Date: 0626 5
- cURus Certificate: UL_E496500-20171020
- Data Sheet, Technical Information: 1SFC151007C02
- Declaration of Conformity - CE: 2CMT2019-005802
- Environmental Information: 1SFC151009D0201
- Instructions and Manuals: 1SFC151011M0201
- RoHS Information: 2CMT2019-005802
- ETIM 4: EC002024 - Accessories for control circuit devices
- ETIM 5: EC002034 - Emergency stop complete
- ETIM 6: EC002034 - Emergency stop complete
- ETIM 7: EC002034 - Emergency stop complete
- Object Classification Code: S
- UNSPSC: 39121500
- WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
